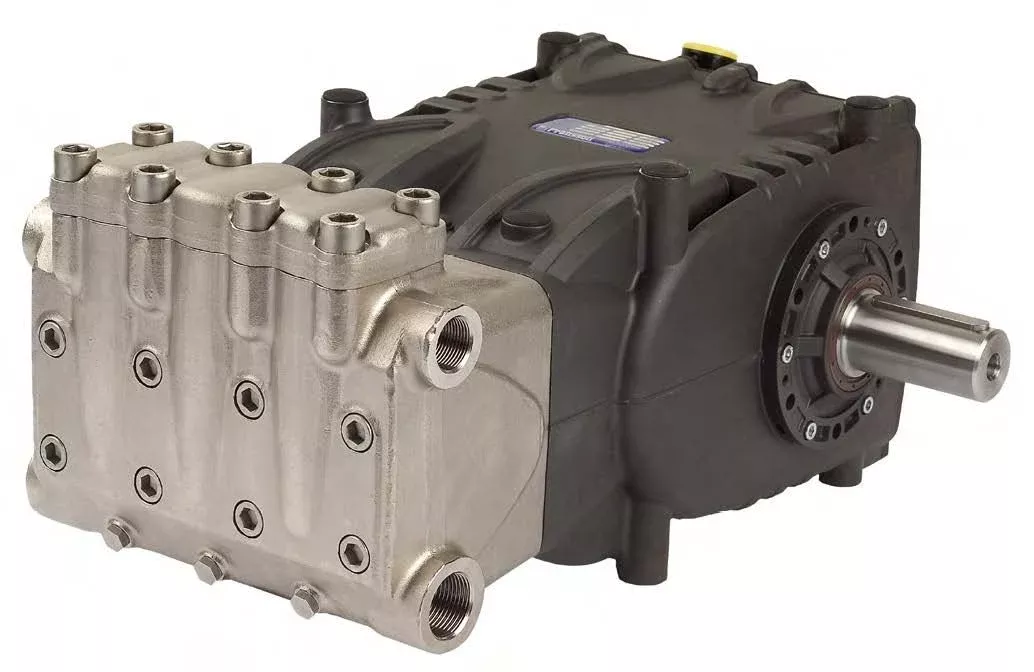

General HF25A 4,050 PSI 19.6 GPM Triplex Plunger Pump. A “New Generation” Pump
Features:• A “New Generation” Pump• Triplex Plunger Pump, available in 4 flows• Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion• Low-high pressure packing design with integrated cooling system• • High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas• Splash lubrication• SAE-C hydraulic drive bell housing and flexible couplers available• Available with external gear box (direct drive only)• Optional pulsing capability using F10744201 lifting valve (not included)
Specifications Sheet
Materials:• High resistance light alloy die cast crankcase• 420 Stainless steel manifold, nickel treated• Taper roller bearings• Special anti-friction, forged, light alloy connecting rods• Forged alloy steel crankshaft, hardened, tempered and nitrited• Cast iron piston guide, nickel treated• Solid ceramic plungers• Stainless steel valves
Specifications:• Maximum Inlet Pressure:. 45 PSI• Maximum Fluid Temperature:. *140° F• Inlet Port Thread:. 1” NPT-F• Discharge Port Thread:. 3/4” NPT-F• Shaft Diameter:. 1.575”/40 mm• Stroke:. 1.969”/50 mm• Pump Dimensions: . 20” x 14.5” x 9.4”• Crankcase Oil Capacity:. 128.5 oz. (3.8 liters, use GP Series 220 Oil• Ship via truck• Weight: 132 lbs./60 kg
