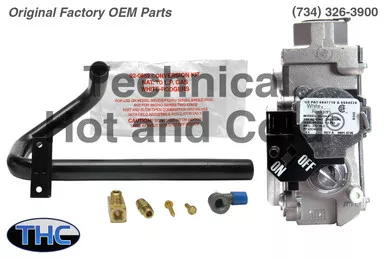

Carrier 327972-752 Replacement Part
Includes:
- (1) – Gas Valve (36J24-618)
- (1) – Manifold (-)
- (1) – Black Pipe 1/8″ Street 90° (-)
- (1) – Brass Tee (-)
- (1) – Male Coupling (-)
- (2) – Brass Screw (-)
- (1) – LP Conversion Kit (EF39ZE023)
Specifications
- Manufacturer: White-Rodgers
- Model 36J24-618
- Ignition Type: Hot Surface, Direct Spark
- Gas Type: Natural or LP Gas (LP Conversion Kit Included)
- Stages: 1
- Opening Characteristics: Slow
- Max BTU/HR @ 1″ Pressure Drop: 140,000 (Natural); 226,800 (LP Gas)
- Voltage: 24
- Hertz: 50/60
- Amperage: 0.280
- Pressure Regulator Factory Set To (Natural): 3.5″ W.C.
- Pressure Regulator Adjustment Range (Natural): 2.5″-5.0″
- Pressure Regulator Adjustment Range (LP Gas): 7.0″-12.0″
- Maximum Pressure: 1/2 PSI (14.0″ W.C.)
- Inlet/Outlet Size: 1/2″ NPT
- Pressure Tap Size: 1/8″ NPT
- Ambient Temperature Rating: -40° F to 175° F (-40° C to 79° C)
Replaces Old Carrier Part Numbers
- 326648-402
- EF32CW208
- EF32CW205
Other Part Numbers
34115, Replacement Components Division, Factory Authorized Parts, Carrier Corporation, B/6, 5001 474G, E1, Rev A, B342, 6047718, 6604538, EF32CW210
Fits Carrier, Bryant, Payne Models:
(Press ctrl + F to find model number below.)
Various. (Call 734-326-3900 with your model and serial number for more information.)
