Fits the following models of Enviro Woodstoves:

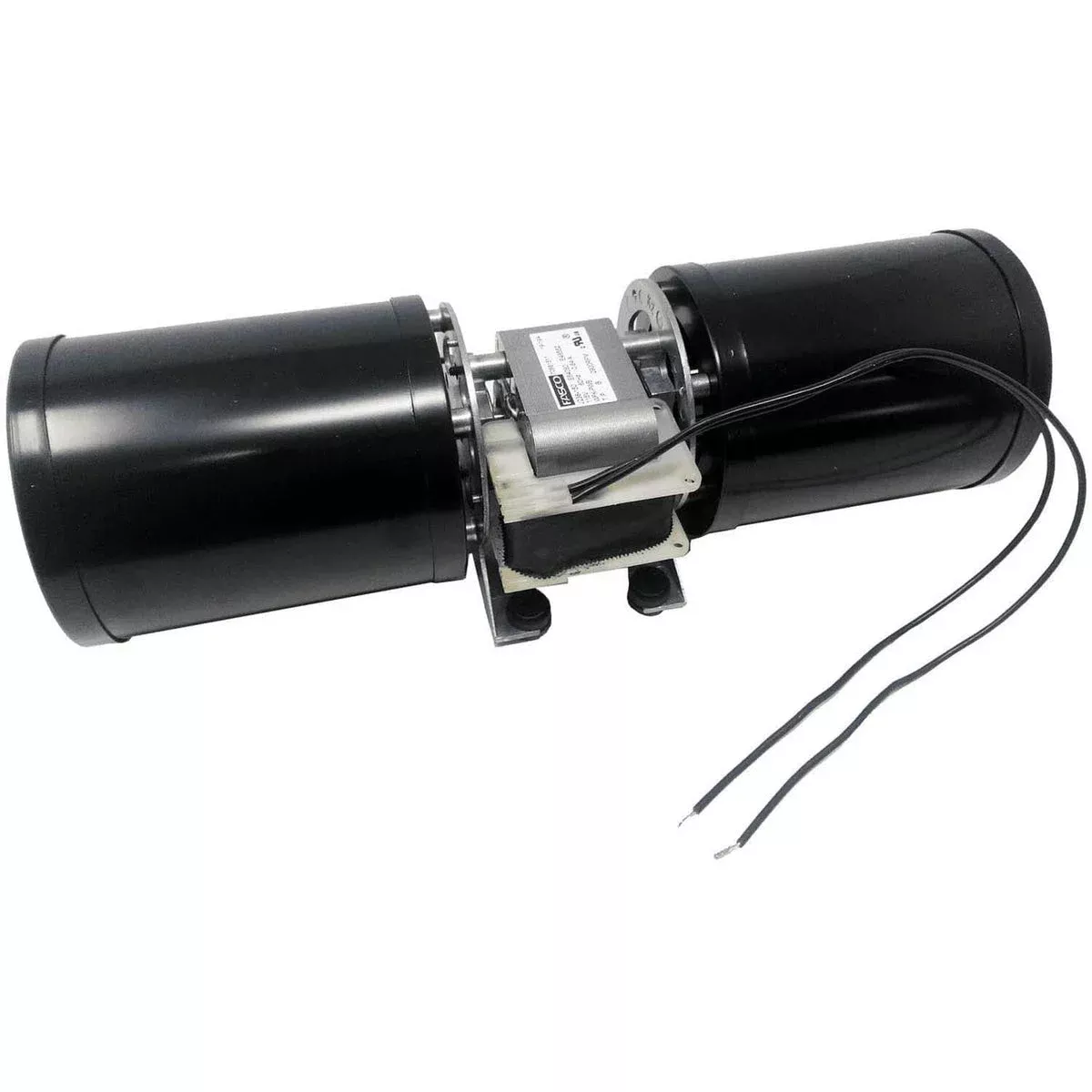

This is an aftermarket blower. You will need to modify it slightly to be able to install it into your Enviro fireplace.
Instructions:
Remove the failed blower from the bracket by drilling out the rivets that hold it onto the bracket.
On the new blower, remove the mounting tabs on the left and right outside corners and the rubber feet and sleeves from the inside mounting feet.
Place the new blower over the bracket that you released from the old blower. Line up the new blower onto the bracket so that it is in the same position as the old blower. (NOTE: the new blower is slightly longer than the old blower.)
Once you have the new blower in place mark on the underside where the holes will need to be drilled into the housing of the new blower so that you can secure it onto the mounting bracket.
You will need 6 screws to secure the part onto the bracket. We have them available here:Self-Tapping Screw.
Attach male spade connectors onto the wire ends.
Now connect the wire leads from the snap switch to one of the wires coming from the blower and the wires leading to the main wire harness onto the remaining wire. Note: It does not matter which wire is used to connect to the different components.
Finally, Install the new blower with the bracket attached, to the fireplace and connect it to the wire harness.
Replacement For Part Number:
- 50-2204
