Garmin 010-02881-00

Original price was: $1,739.99.Current price is: $1,052.41.

Sale!

49 in stock

SKU: GRM010-02881-00 Category:
Share

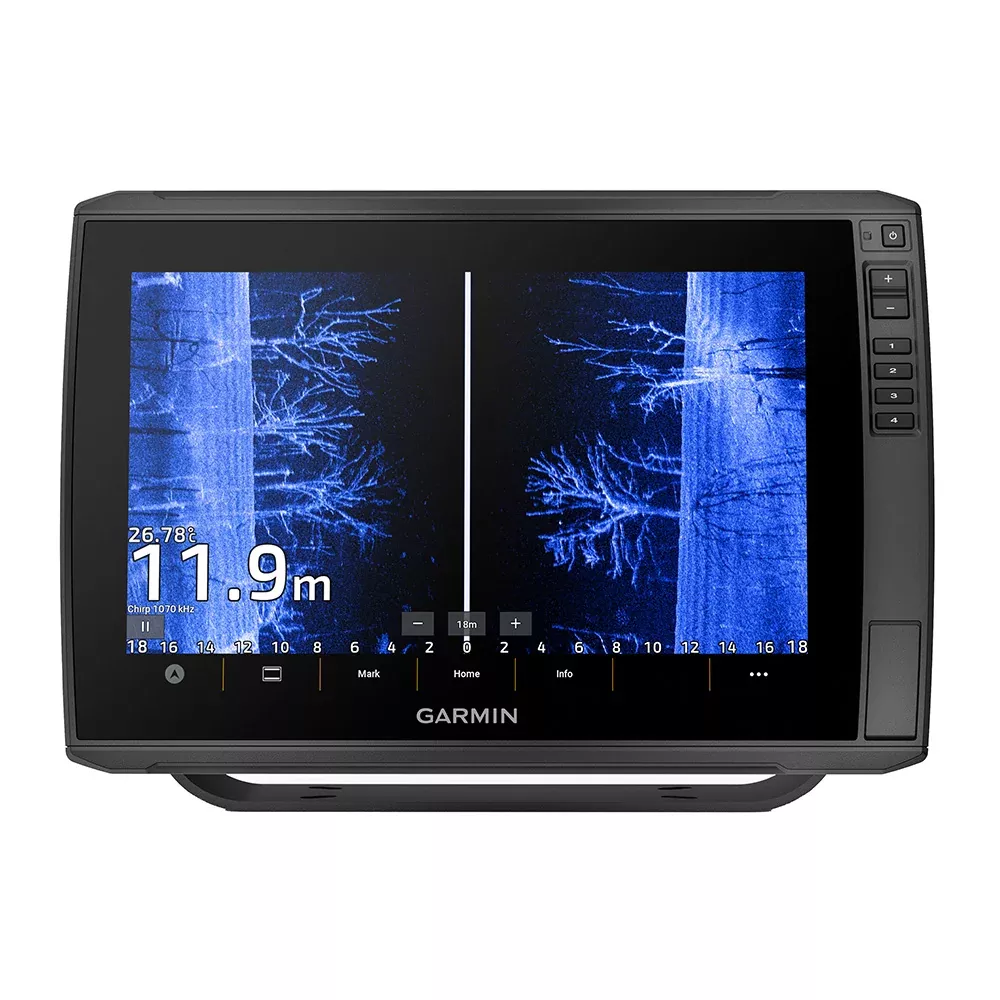

ECHOMAP™ Ultra 2 122sv without Transducer

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler’s fingertips.

Features:

  • ECHOMAP™ Ultra 2 122sv with Worldwide Basemap
  • 12” touchscreen
  • Supports livescope™ sonar, and more
  • Wirelessly network; share sonar, waypoints, and routes.
  • Capture screen recordings to share fish catches
  • Multi-band GPS for improved position accuracy

Livescope™ Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints, and routes — with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000® Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.

ActiveCaptain® App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.

Force® Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

  • ECHOMAP Ultra 122sv
  • Power/data cable
  • Bail mount with quick-release cradle
  • Protective sun cover
  • 8-pin transducer to 12-pin sounder adapter cable
  • Hardware
  • Documentation
  • Specifications

General:

  • Dimension: 13.4″ x 9.0″ x 3.9″ (34.1 x 22.9 x 9.8 cm
  • Weight: 5.5 lbs (2.5 kg)
  • Waterproof: IPX7
  • Touchscreen: Yes
  • Display Type: WXGA, IPS
  • Display Size: 10.3″ x 6.4″; 12.1″ diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
  • Display Resolution: 1280 x 800 pixels
  • Mounting Options: Bail or flush
  • Input: Touchscreen with Keyed Assist

Maps & Memory:

  • Accepts Data Cards: 2 microSD cards
  • Waypoints: 5000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100

Sensors:

  • GPS: Yes
  • GLONASS: Yes
  • Galileo: Yes
  • BeiDou: Yes
  • Has Built-In Receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 Compatible: Yes
  • NMEA 0183 Compatible: Yes
  • Supports WAAS: Yes
  • Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

  • Built-In Auto Guidance+: Yes
  • Garmin Navionics+ Inland & Coastal: Yes (see Additional)
  • Tide Tables: Yes (see Additional)

Optional Map Support:

  • BlueChart g3: Yes
  • BlueChart g3 Vision: Yes
  • LakeVü g3: Yes
  • LakeVü g3 Ultra: Yes
  • Garmin Navionics+™: Yes
  • Garmin Navionics+ Vision+™: Yes
  • TOPO 100k: Yes
  • Standard Mapping: Yes
  • Garmin Quickdraw Contours: Yes

Chartplotter Features:

  • AIS: Yes
  • DSC: Yes
  • Supports Fusion-Link™ Compatible Radios: Yes
  • ActiveCaptain® Compatible: Yes
  • Sailing Features: Yes

Electrical Features:

  • Power Input: 9 to 18 VDC
  • Typical Current Draw at 12 VDC: 2.5 A
  • Maximum Current Draw at 12 VDC: 5.0 A
  • Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

  • Displays Sonar: Yes
  • Power Output: 600 W
  • Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
  • ClearVü: Built-in 260/455/800/1000/1200 kHz
  • SideVü: Built-in 260/455/800/1000/1200 kHz
  • Panoptix™ Sonar: Yes
  • Livescope: Yes

Connections:

  • NMEA 2000® Ports: 1
  • Garmin Marine Network Ports: 2 (Large Connector)
  • 12-Pin Transducer Ports: 12-Pin Scanning Sonar
  • ANT+ (Connectivity): Yes
  • Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Features & Specifications

  • UPC: 0753759325534
  • Dimensions: 16 × 11 × 8
  • Category: Marine Navigation & Instruments | GPS – Fishfinder Combos
  • Screen Size = 12″ | Touchscreen = Yes | Transducer Included = No
