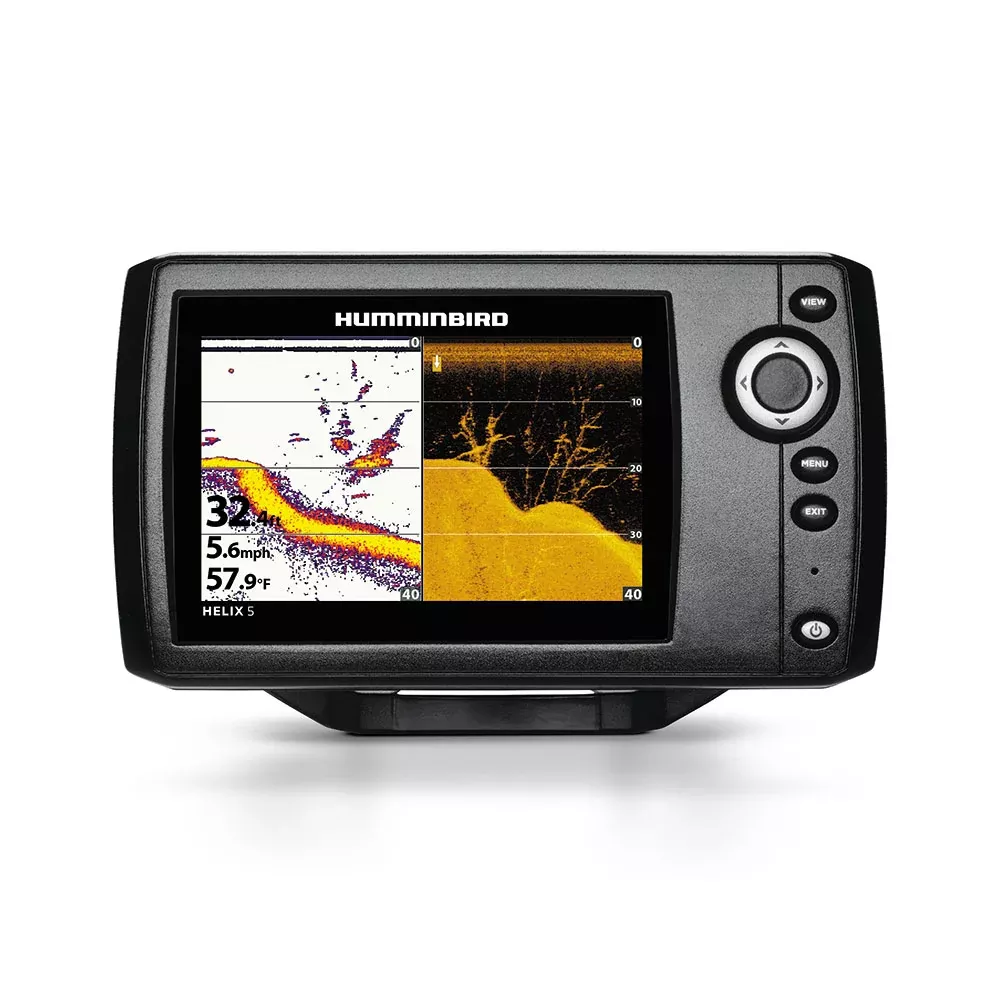

HELIX 5 DI G2 Fishfinder
The HELIX 5 DI G2 with an improved user interface and operating system, features a brilliant 800H x 480V, 5″ 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.
CHIRP Frequencies (Out of Box Transducer)
455 kHz: 420-520 kHz
800 kHz: 790-850 kHz
Maximum Depth: 600 feet
DOWN Imaging Sonar
Down Imaging Sonar — Get a fish-eye’s view of what’s happening below your boat. Incredible images are created with High-frequency sound waves.
SWITCHFIRE
SwitchFire Sonar — Take command of how your sonar returns appear with our Clear and Max Modes.
Dualbeam PLUS Sonar
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
Upgradeable Software
Up-gradable Software — Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.
WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Features & Specifications
- Manufacturer Part Number: 410200-1
- UPC: 0082324049019
- Dimensions: 16 × 10 × 5
- Category: Marine Navigation & Instruments | Fishfinder Only / Electronics | Fishfinders, Chartplotters, Radars, Autopilots, etc.
- Included Transducer = XNT-9-DI-T | Screen Size = 5″ | Transducer Type = Transom Mount | Transducer Included = Yes
- 5″ HD 256 color TFT wide screen
- 200/83kHz Dual beam sonar
- 1500′ depth capability
- 455/800khz Down Imaging
- 350ft DI range
- 500 Watts (RMS) / 4000 Watts (PTP)
- 480 x 800 pixel resolution
- SwitchFire Sonar
- Down Imaging included
- Display: 5″
Compatibility, Limitations & Notices
- WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
Accessories
- 32060|39708|44708|54039|54040|54042|56703|56704|56813|59282|64752|64753|65247|65249|65251|65252|65253|65254|65255|71957
- 740093-1|710226-1|740087-1|740142-1|740143-1|780028-1|RL-ADM|RL-ARM|RAM-202-153-202U|RLS- AM|720096-1|720096-2|TM258-HB|TM260-HB|B60-12-HB|B60-20-HB|B164-0-HB|B164-12-HB|B164-20-HB|RAM-202-153-B-202U
