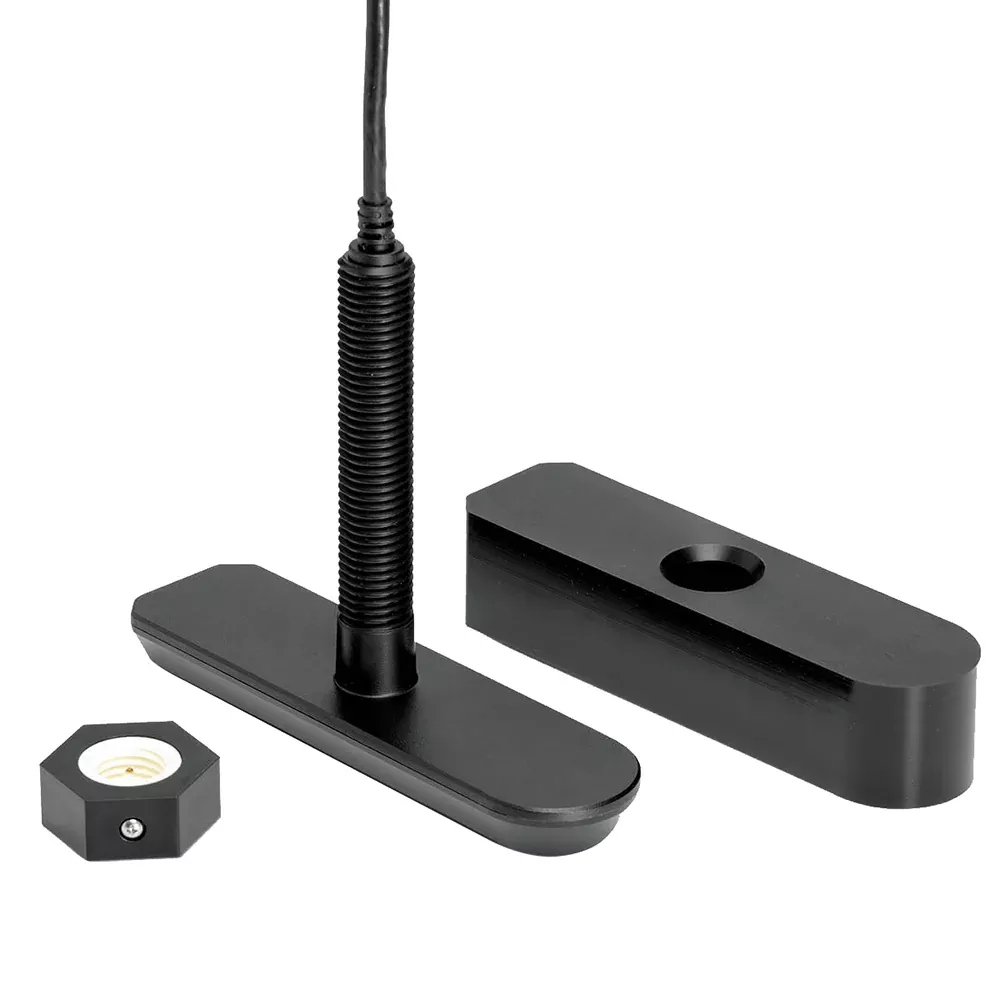

XPTH 14 HW MSI T Plastic Thru Hull Transducer
SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.
Features:
- This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
- MEGA Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)
- MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 250ft (76m), MEGA DI+: 1075-1150 kHz – 200ft (61m)
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- Dimensions: L 8.4″ x W 2.3″ x D 1.0″ – Stem Length 5″, Stem Diameter 1″
- 1-Year Limited Warranty
Features & Specifications
- Manufacturer Part Number: 710294-1
- UPC: 0082324053283
- Dimensions: 15 × 10 × 4
- Category: Marine Navigation & Instruments | Transducers
- Imaging = Standard/Down/Side | Chirp = High Wide | Cable Length (Feet) = 30′ | Speed Included = No | Mounting Style = Thru-Hull | Temperature = Yes | Pins = 14
Accessories
- 85782
- 720112-1
