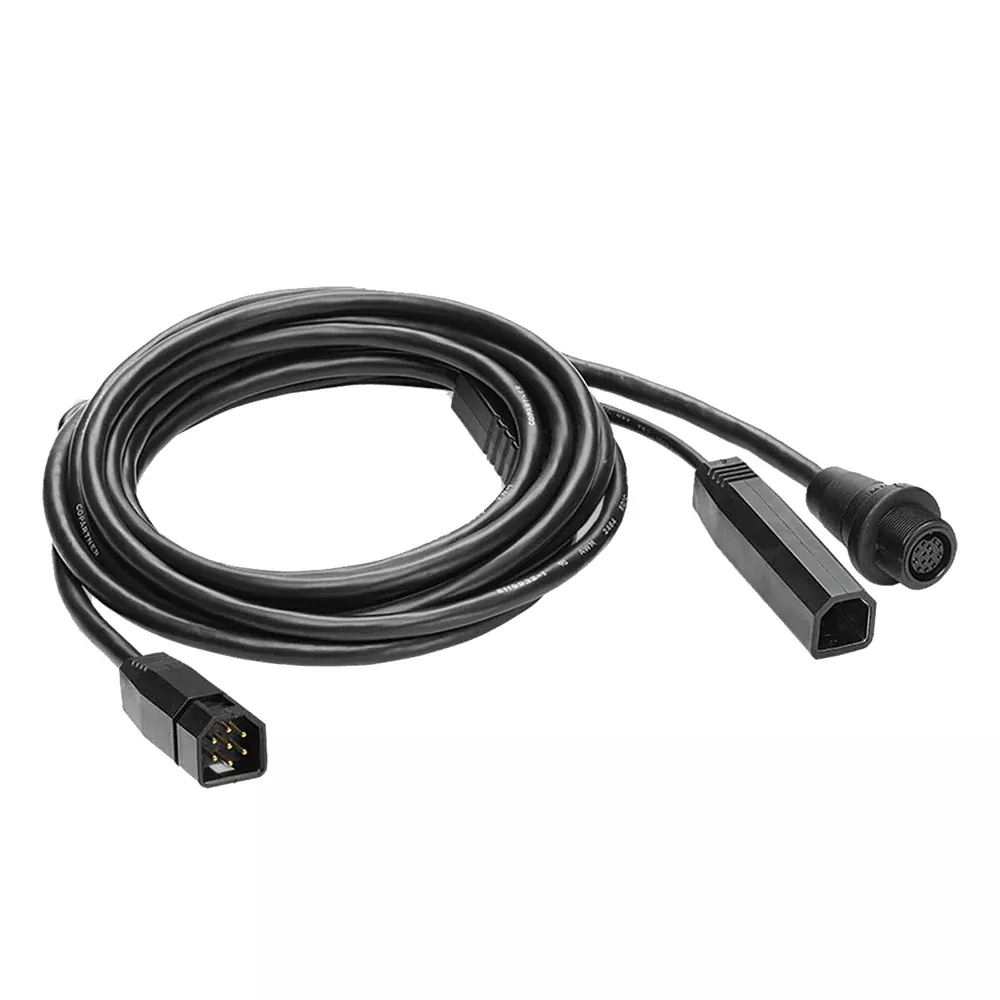

9-M360-2-DDI-Y – MEGA 360 & 2D/MDI 7-Pin Y-Cable
This Y cable allows for the connection a MEGA 360 Imaging transducer and an external 7-pin HW / MDI+ transducer to the same compatible HELIX fish finder.
- Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder.
- For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin HW / MDI+ transducer.
- This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to 720108-1 14 M360 2DDI Y for this specific rigging need.
- Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
- 30″ (76 cm) cable on Dual Sprectrum CHIRP side of cable
- 10′ (3 m) cable on the MEGA 360 side
- 1-Year Limited Warranty
Features & Specifications
- Manufacturer Part Number: 720107-1
- UPC: 0082324054853
- Dimensions: 9 × 7 × 3
- Category: Marine Navigation & Instruments | Accessories / Electronics | Fishfinders, Chartplotters, Radars, Autopilots, etc.
- Type = Adapters
- Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder.
- For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin HW / MDI+ transducer.
- This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to 720108-1 14 M360 2DDI Y for this specific rigging need.
- Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
- 30″ (76 cm) cable on Dual Sprectrum CHIRP side of cable
- 10′ (3 m) cable on the MEGA 360 side
- 1-Year Limited Warranty
- Model Number: 9 M360 2 DDI Y
