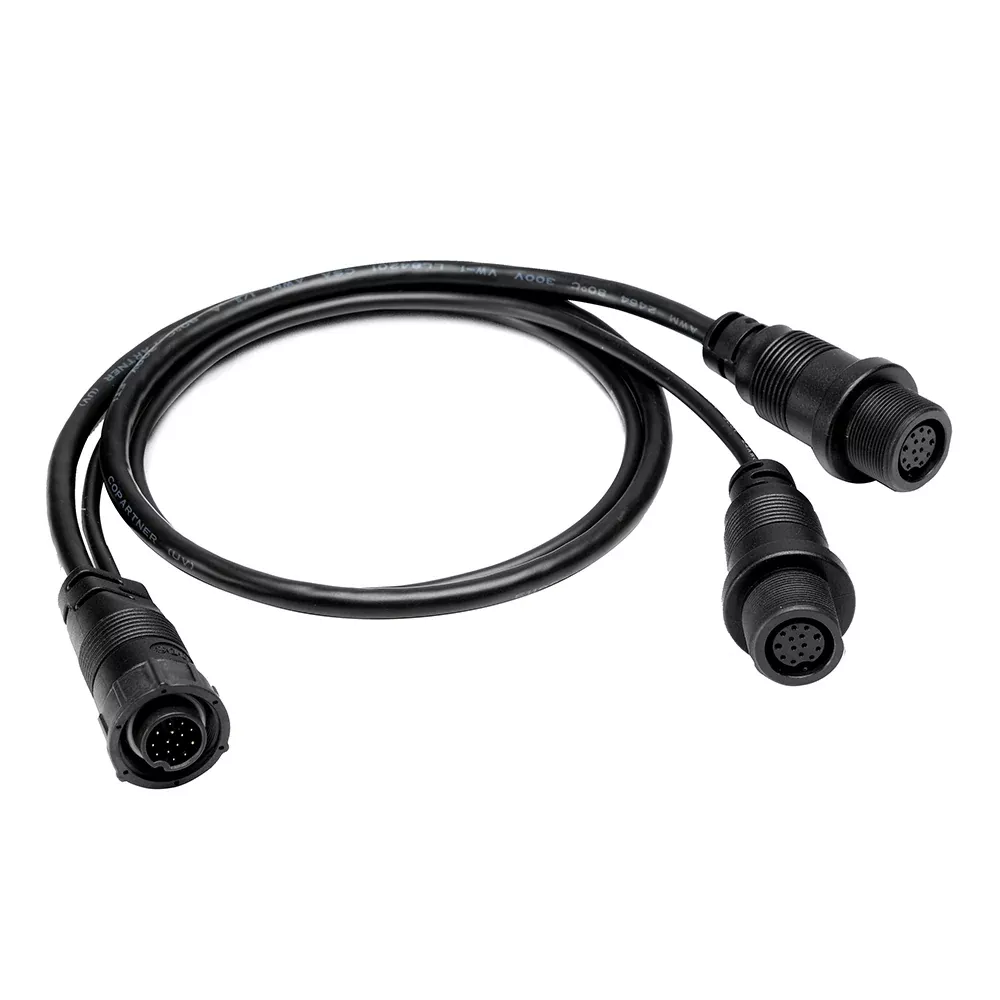

14 M SILR Y – SOLIX®/APEX® Side Imaging Left-Right Splitter Cable
The 14 M ID SILR Y cable allows for two Side Imaging transducers to be connected to into a single sonar input on a Humminbird chartplotter. This y-cable utilizes the two Side Imaging transducer to act as independent port and starboard Side Imaging sonar sources when boat hulls and transducer obstructions require separate transducers for a clear picture on each side of the vessel. This rigging cable provides the ability to install a separate high-speed Humminbird 2D transducer for high-speed depth reading and sonar performance. Alternatively, this cable can also be used to add an accessory Airmar® 2D transducer to a Humminbird control head that also has a Side or Down Imaging transducer connected at the same time. This cable supports Transducer ID for automatic recognition and easy setup of Airmar® accessory transducers.
Features:
- Compatible with: All SOLIX and APEX models
- Combines two Side Imaging transducers together, acting as independent port and starboard Side Imaging sonar sources and can then be connected to a single Humminbird control head.
- Includes transducer ID for Airmar® accessory transducers when used in combination with 14 M ID SIDB Y (720111-1)
- Cable length: 30″ (76 cm)
- 1-Year Limited Warranty
Features & Specifications
- Manufacturer Part Number: 720112-1
- UPC: 0082324055515
- Dimensions: 9 × 8 × 2
- Category: Marine Navigation & Instruments | Accessories / Electronics | Fishfinders, Chartplotters, Radars, Autopilots, etc.
- Combines two Side Imaging transducers together, acting as independent port and starboard Side Imaging sonar sources and can then be connected to a single Humminbird control head.
- Includes transducer ID for Airmar? accessory transducers when used in combination with 14 M ID SIDB Y (720111-1)
- Cable length: 30″ (76 cm)
- Description: Side Imaging Left-Right Splitter Cable for SOLIX/APEX models
- Model Number: 14 M SILR Y
