ICP 1177657 Replacement Part
Includes:

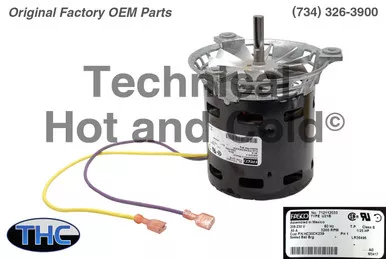

- (1) – Draft Inducer Motor (1177657)
Specifications
- Manufacturer: Fasco
- Manufacturer Part : 712112033
- Type: U21B
- Horsepower: 1/25
- Voltage: 208-230
- Hertz: 60
- Number of Phases: 1
- Amps: 0.65
- RPM: 3200
- Rotation: CW
- Rotation: Clockwise Lead End
- Bearings: Sealed Ball
- Service Factor: 1.0
- Shaft Type: Double Sided Flat Shaft
- Shaft Diameter: 5/16″
- Shaft Length: 1-3/8″
- Thermally Protected
- Insulation Class: B
Country of Origin: Mexico
Replaces Old ICP Part Numbers
- There are no older part numbers.
Other Part Numbers
MOTOR IDF 1/230V 1/2, 1177657, Fast OEM Parts Division, International Comfort Products, M/7, HC30CK239, 0 08 23960 32179 0, D/4, 0009-2, 712112033M, PF7809645-1,Fasco, MM232225482, LR6319, U21B,
Fits ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night Models:
(Press ctrl + F to find model number below.)
PDD324040K000C1, PDD324040K001C1, PDD330040H000C1, PDD330040H001C1, PDD330040K000C1, PDD330040K001C1, PDD342090H000C1, PDD342090H001C1, PDD342090K000C1, PDD342090K001C1, PDD348090H000C1, PDD348090H001C1, PDD348090K000C1, PDD348090K001C1, PDD360090H000C1, PDD360090H001C1, PDD360090K000C1, PDD360090K001C1, PDD424040K000C1, PDD424040K001C1, PDD430040H000C1, PDD430040H000D1, PDD430040H001C1, PDD430040H001D1, PDD430040K000C1, PDD430040K001C1, PDD436090H000C1, PDD436090H000D1, PDD436090H001C1, PDD436090H001D1, PDD436090K000C1, PDD436090K001C1, PDD442090H000C1, PDD442090H000D1, PDD442090H001C1, PDD442090H001D1, PDD442090K000C1, PDD442090K001C1, PDD448090H000C1, PDD448090H000D1, PDD448090H001C1, PDD448090H001D1, PDD448090K000C1, PDD448090K001C1, PDD460090H000C1, PDD460090H000D1, PDD460090H001C1, PDD460090H001D1, PDD460090K000C1, PDD460090K001C1, PDS324040KGP0C1, PDS324040KGP1C1, PDS330040KGP0C1, PDS330040KGP1C1, PDS342090KGP0C1, PDS342090KGP1C1, PDS348090KGP0C1, PDS348090KGP1C1, PDS360090KGP0C1, PDS360090KGP1C1, PDS424040KGP0C1, PDS424040KGP1C1, PDS430040HGS0C1, PDS430040HGS0D1, PDS430040HGS1C1, PDS430040HGS1D1, PDS430040KGP0C1, PDS430040KGP1C1, PDS436090HGS0C1, PDS436090HGS0D1, PDS436090HGS1C1, PDS436090HGS1D1, PDS436090KGP0C1, PDS436090KGP1C1, PDS442090HGS0C1, PDS442090HGS0D1, PDS442090HGS1C1, PDS442090HGS1D1, PDS442090KGP0C1, PDS442090KGP1C1, PDS448090HGS0C1, PDS448090HGS0D1, PDS448090HGS1C1, PDS448090HGS1D1, PDS448090KGP0C1, PDS448090KGP1C1, PDS460090HGS0C1, PDS460090HGS0D1, PDS460090HGS1C1, PDS460090HGS1D1, PDS460090KGP0C1, PDS460090KGP1C1, PGD324040K000C1, PGD324040K001C1, PGD324040KTP0C1, PGD324040KTP1C1, PGD330040H000C1, PGD330040H001C1, PGD330040K000C1, PGD330040K001C1, PGD330040KTP0C1, PGD330040KTP1C1, PGD342090H000C1, PGD342090H001C1, PGD342090K000C1, PGD342090K001C1, PGD342090KTP0C1, PGD342090KTP1C1, PGD348090H000C1, PGD348090H001C1, PGD348090K000C1, PGD348090K001C1, PGD348090KTP0C1, PGD348090KTP1C1, PGD360090H000C1, PGD360090H001C1, PGD360090K000C1, PGD360090K001C1, PGD360090KTP0C1, PGD360090KTP1C1, PGD424040K000C1, PGD424040K001C1, PGD424040KTP0C1, PGD424040KTP1C1, PGD430040H000C1, PGD430040H000D1, PGD430040H001C1, PGD430040H001D1, PGD430040K000C1, PGD430040K001C1, PGD430040KTP0C1, PGD430040KTP1C1, PGD442090H000C1, PGD442090H000D1, PGD442090H000E1, PGD442090H001C1, PGD442090H001D1, PGD442090H001E1, PGD442090K000C1, PGD442090K001C1, PGD442090KTP0C1, PGD442090KTP1C1, PGD448090H000C1, PGD448090H000D1, PGD448090H000E1, PGD448090H001C1, PGD448090H001D1, PGD448090H001E1, PGD448090K000C1, PGD448090K001C1, PGD448090KTP0C1, PGD448090KTP1C1, PGD460090H000C1, PGD460090H000D1, PGD460090H000E1, PGD460090H001C1, PGD460090H001D1, PGD460090H001E1, PGD460090K000C1, PGD460090K001C1, PGD460090KTP0C1, PGD460090KTP1C1, PGD524040K000C1, PGD524040K001C1, PGD524040KTP0C1, PGD524040KTP1C1, PGD548090K000C1, PGD548090K001C1, PGD548090KTP0C1, PGD548090KTP1C1, PGD560090K000C1, PGD560090K001C1, PGD560090KTP0C1, PGD560090KTP1C1, PGN424040K00A1, PGN424040K01A1, PGN424060K00A1, PGN424060K01A1, PGN442090H00A1, PGN442090H01A1, PGN442090K00A1, PGN442090K01A1, PGN448090H00A1, PGN448090H01A1, PGN448090K00A1, PGN448090K01A1, PGN460090H00A1, PGN460090H01A1, PGN460090K00A1, PGN460090K01A1, PGN524040K00A1, PGN524040K01A1, PGN524060K00A1, PGN524060K01A1, PGN536060K00A1, PGN536060K01A1, PGN536090K00A1, PGN536090K01A1, PGN548090K00A1, PGN548090K01A1, PGN548115K00A1, PGN548115K01A1, PGN548130K00A1, PGN548130K01A1, PGN560090K00A1, PGN560090K01A1, PGN560115K00A1, PGN560115K01A1, PGN560130K00A1, PGN560130K01A1, PGS324040KGP0C1, PGS324040KGP1C1, PGS324040KGS0C1, PGS324040KGS1C1, PGS330040HGS0C1, PGS330040HGS1C1, PGS330040KGP0C1, PGS330040KGP1C1, PGS330040KGS0C1, PGS330040KGS1C1, PGS342090HGS0C1, PGS342090HGS1C1, PGS342090KGP0C1, PGS342090KGP1C1, PGS342090KGS0C1, PGS342090KGS1C1, PGS348090HGS0C1, PGS348090HGS1C1, PGS348090KGP0C1, PGS348090KGP1C1, PGS348090KGS0C1, PGS348090KGS1C1, PGS360090HGS0C1, PGS360090HGS1C1, PGS360090KGP0C1, PGS360090KGP1C1, PGS360090KGS0C1, PGS360090KGS1C1, PGS424040KGP0C1, PGS424040KGP1C1, PGS424040KGS0C1, PGS424040KGS1C1, PGS430040HGS0C1, PGS430040HGS0D1, PGS430040HGS1C1, PGS430040HGS1D1, PGS430040KGP0C1, PGS430040KGP1C1, PGS430040KGS0C1, PGS430040KGS1C1, PGS442090HGP0E1, PGS442090HGP1E1, PGS442090HGS0C1, PGS442090HGS0D1, PGS442090HGS1C1, PGS442090HGS1D1, PGS442090KGP0C1, PGS442090KGP1C1, PGS442090KGS0C1, PGS442090KGS1C1, PGS448090HGP0E1, PGS448090HGP1E1, PGS448090HGS0C1, PGS448090HGS0D1, PGS448090HGS1C1, PGS448090HGS1D1, PGS448090KGP0C1, PGS448090KGP1C1, PGS448090KGS0C1, PGS448090KGS1C1, PGS460090HGP0E1, PGS460090HGP1E1, PGS460090HGS0C1, PGS460090HGS0D1, PGS460090HGS1C1, PGS460090HGS1D1, PGS460090KGP0C1, PGS460090KGP1C1, PGS460090KGS0C1, PGS460090KGS1C1, PGS524040KGS0C1, PGS524040KGS1C1, PGS524040KTP0C1, PGS524040KTP1C1, PGS548090KGS0C1, PGS548090KGS1C1, PGS548090KTP0C1, PGS548090KTP1C1, PGS560090KGS0C1, PGS560090KGS1C1, PGS560090KTP0C1, PGS560090KTP1C1, WPG3244040LKC1, WPG3244040RKC1, WPG3304040LKC1, WPG3304040RKC1, WPG3424090LKC1, WPG3424090RKC1, WPG3484090LKC1, WPG3484090RKC1, WPG3604090LKC1, WPG3604090RKC1,
