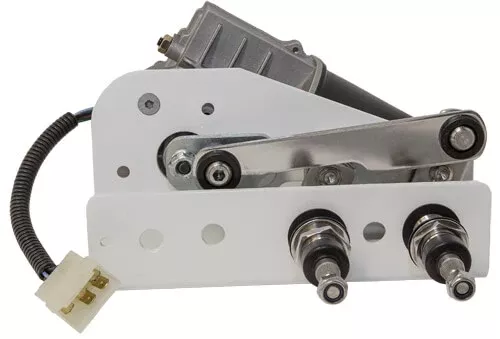

The Roca W50 Wiper Motor is built for extreme marine conditions, offering powerful and reliable performance. With 50Nm of torque, this heavy-duty 12V motor can drive wiper arms and blades up to 1200mm (47.25 inches), making it suitable for large vessel windshields. The dual tapered drive shaft ensures a secure motor-to-arm connection, and the stepless sweep angle adjustment offers flexibility from 45 to 110 degrees for maximum visibility.
- High torque output of 50Nm
- Drives arms and blades up to 1200mm (47.25 inches)
- Two speed operation: Slow at 30 sweeps per minute, Fast at 47 sweeps per minute
- Stepless sweep angle adjustment from 45 to 110 degrees
- Dynamic parking function, reversible left or right
- Dual tapered drive shaft for secure fit
- Insulated ground for use with metal, GRP, or wooden boats
- CE approved and EMC protected
- Easy installation and wiring
- Wide selection of compatible arms and blades
- 3 year warranty on motors and arms; 1 year for blades
Supporting Documents:
- Product Sheet (PDF)
- Dimensions Drawing (PDF)
| Name | Description |
|---|---|
| Manufacturer Part No | RC531013 |
| Voltage | 12V |
| Torque | 50Nm |
| Shaft | 40mm |
| Bulkhead Thickness (mm) | 28mm |
| Bulkhead Thickness (in.) | 1.1 in. |
| Sweep Angle Adjustment | 45 to 110 degrees, stepless adjustment |
