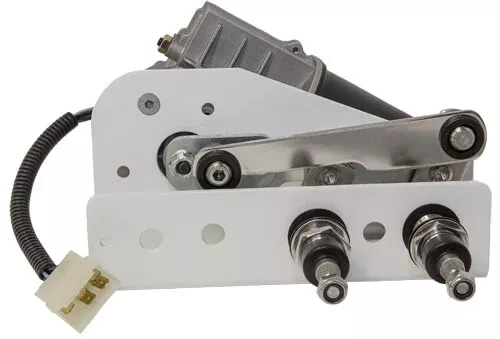

The Roca W50 Wiper Motor is built for the most demanding marine environments. This 24V motor delivers 50Nm of torque and drives wiper arms and blades up to 1200mm (47.25 inches) in length. Its dual tapered drive shaft ensures a secure arm connection, while the sweep angle is steplessly adjustable between 45 and 110 degrees for maximum coverage and visibility. Designed for easy installation with insulated ground and EMC protection, the W50 is a premium choice for vessels requiring durable and high-performance wiper systems.
- 50Nm high torque output
- Drives wiper arms and blades up to 1200mm (47.25 inches)
- Two speed operation: 30 sweeps per minute (slow) and 47 sweeps per minute (fast)
- Stepless sweep angle adjustment from 45 to 110 degrees
- Dynamic parking, reversible left or right
- Dual tapered drive shaft for secure motor-to-arm fit
- Insulated ground for use on metal, GRP, or wooden boats
- EMC protected and CE approved
- Easy to wire and install
- Wide compatibility with various arms and blades
- 3 year warranty on motors and arms; 1 year warranty on blades
Supporting Documents:
- Product Sheet (PDF)
- Dimensional Drawing (PDF)
| Name | Description |
|---|---|
| Manufacturer Part No | RC531014 |
| Voltage | 24V |
| Torque | 50Nm |
| Shaft | 40mm |
| Bulkhead Thickness (mm) | 28mm |
| Bulkhead Thickness (in.) | 1.1 in. |
| Sweep Angle Adjustment | 45 to 110 degrees, stepless adjustment |
