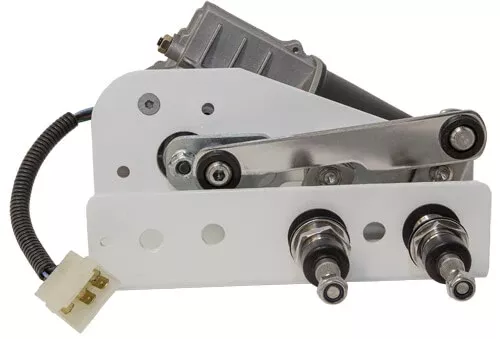

The Roca W50 Wiper Motor is engineered for extreme marine conditions, offering unmatched wiping power and durability. This 12V heavy-duty motor delivers 50Nm of torque and features a dual drive system with a 65mm shaft, designed to handle wiper arms and blades up to 1200mm (47.25 in.). Perfect for larger vessel windows, this motor ensures excellent visibility even in the harshest weather.
- 50Nm torque for heavy-duty wiping power
- Dual tapered drive shaft for a secure arm connection
- Sweep angle easily adjustable from 45° to 110°
- Two-speed operation: Slow (30 sweeps/min) and Fast (47 sweeps/min)
- Dynamic parking—switchable between left and right
- Insulated ground for safe installation on metal, GRP, or wooden surfaces
- Stepless angle adjustment slot for precise control
- Wide compatibility with a variety of wiper arms and blades
- CE approved and EMC protected
- Simple wiring and mounting design
- 3-year warranty on motor and arms; 1-year for blades
| Name | Description |
|---|---|
| Manufacturer Part No | RC531023 |
| Voltage | 12V |
| Torque | 50Nm |
| Bulkhead Thickness (mm) | 53mm |
| Bulkhead Thickness (in.) | 2.1 in. |
| Sweep Angle Adjustment | 45–100 degrees, stepless slot |
