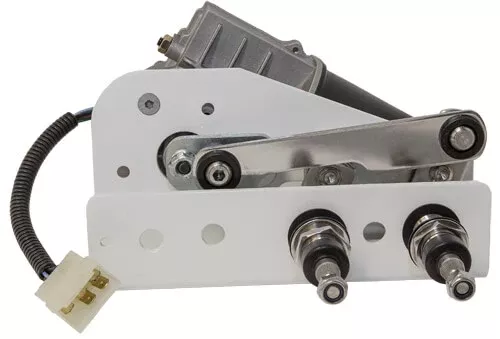

The Roca W50 Wiper Motor is a powerful 24V heavy-duty marine motor built to perform in the toughest sea conditions. With an impressive 50Nm torque and a rugged dual drive system, it supports wiper arms and blades up to 1200mm (47.25 in.), making it ideal for large vessels. Designed for a 65mm shaft and compatible with 53mm (2.1 in.) bulkhead thickness, this motor offers precision wiping performance and long-lasting reliability.
- High-torque 50Nm motor for heavy-duty marine wiper systems
- Supports wiper arms and blades up to 1200mm (47.25 in.)
- Two speeds: Slow (30 sweeps/min), Fast (47 sweeps/min)
- Dynamic parking system, easily adjustable left or right
- Dual tapered drive shaft for secure wiper arm connection
- Stepless sweep angle adjustment from 45° to 110°
- CE approved and EMC protected for marine safety
- Insulated ground for compatibility with metal, GRP, and wood boats
- Easy wiring and installation
- Durable design with wide compatibility of arms and blades
- 3-year warranty on motor and arms; 1 year for blades
| Name | Description |
|---|---|
| Manufacturer Part No | RC531024 |
| Voltage | 24V |
| Torque | 50Nm |
| Bulkhead Thickness (mm) | 53mm |
| Bulkhead Thickness (in.) | 2.1 in. |
| Sweep Angle Adjustment | 45–100 degrees, stepless slot |
Supporting Documents:
- Product Sheet (PDF)
- Dimensional Drawing (PDF)
