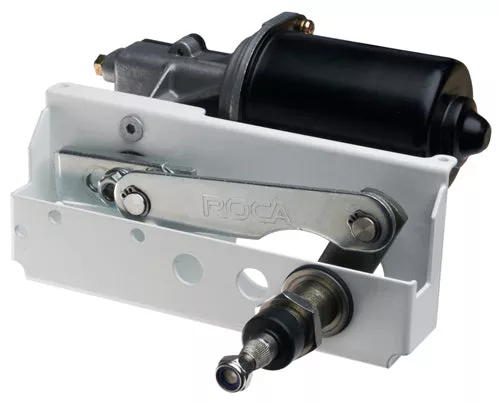

The Roca W25 Wiper Motor is a compact yet powerful 24V motor built for demanding marine conditions. With 25Nm of torque, this heavy-duty motor can operate wiper arms and blades up to 750mm (29.5 in.), and reach up to 45 inches using the pantograph configuration. Designed for bulkhead mounting with a 53mm (2.1 in.) thickness, it provides efficient wiping and long-lasting performance.
- 25Nm torque for reliable wiping on large marine windshields
- Handles arms and blades up to 750mm (29.5 in.)
- Maximum wiping reach: 45 in. with pantograph setup
- Two-speed operation: 40 sweeps/min (slow), 60 sweeps/min (fast)
- Dynamic parking—switchable between left and right
- Single tapered drive shaft ensures a secure arm connection
- External idler shaft mount supports pantograph arms
- Stepless sweep angle adjustment: 45° to 110°
- Insulated ground for use on metal, GRP, or wooden boats
- CE certified and EMC protected
- Quick installation and easy wiring
- Compatible with a wide range of arms and blades
- 3-year warranty on motor and arms; 1-year on blades
| Name | Description |
|---|---|
| Manufacturer Part No | RC531026 |
| Voltage | 24V |
| Torque | 25Nm |
| Bulkhead Thickness (mm) | 53mm |
| Bulkhead Thickness (in.) | 2.1 in. |
| Sweep Angle Adjustment | 45–100 degrees, stepless slot |
