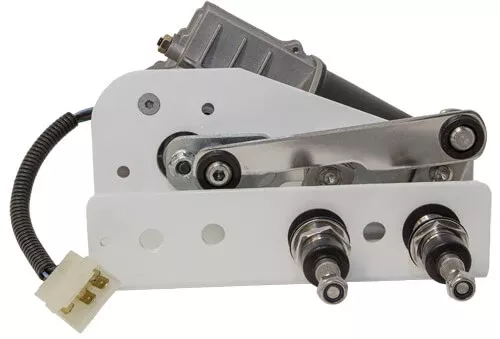

The Roca W50 Wiper Motor is built for demanding marine environments. Delivering 50Nm of torque, it drives wiper arms and blades up to 1200mm (47.25 inches), making it ideal for large vessel windshields. Designed for 78mm (3.1-inch) bulkhead thickness, this 12V motor features dual drive shafts, dynamic parking, and stepless sweep angle adjustment for optimal visibility and reliability.
- Powerful 50Nm torque for heavy-duty wiping
- Drives up to 1200mm (47.25″) arms and blades
- Dual-speed: 30 sweeps/min (slow), 47 sweeps/min (fast)
- Dynamic parking adjustable for left or right
- Stepless sweep angle adjustment: 45° to 110°
- Dual tapered drive shaft ensures secure arm connection
- Insulated ground for use on metal, GRP, or wooden boats
- CE approved and EMC protected
- Easy to install and wire
- Compatible with a wide range of arms and blades
- 3-year warranty on motors and arms; 1 year on blades
| Name | Description |
|---|---|
| Manufacturer Part No | RC531033 |
| Voltage | 12V |
| Torque | 50Nm |
| Bulkhead Thickness (mm) | 78mm |
| Bulkhead Thickness (in.) | 3.1 in. |
| Sweep Angle Adjustment | 45° to 110°, stepless slot adjustable |
Product Resources:
- Dimensional Drawing (PDF)
- Product Sheet (PDF)
