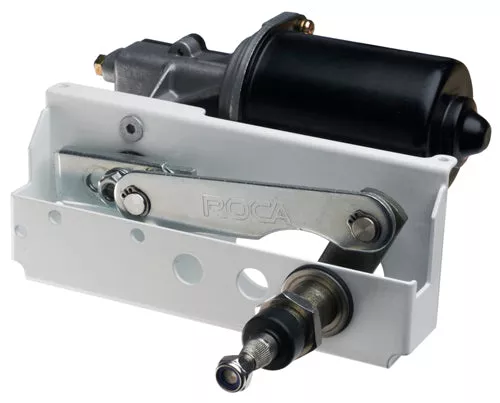

The Roca W25 Wiper Motor is engineered for durability and performance in tough marine environments. With 25Nm of torque, this 12V motor supports wiper arms and blades up to 750mm (29.5 in.), with a maximum wiping reach of 45 inches using a pantograph configuration. Designed for bulkhead thicknesses of 78mm (3.1 inches), it features stepless sweep angle adjustment, dual-speed operation, and dynamic parking for maximum visibility.
- 25Nm torque for reliable wiping power
- Supports up to 750mm (29.5″) arms and blades
- Maximum wiping range: 45″ (with pantograph)
- Two-speed function: 40 sweeps/min (slow) and 60 sweeps/min (fast)
- Stepless sweep angle adjustment: 45° to 110°
- Dynamic parking switchable to left or right side
- Single tapered drive shaft for secure motor-to-arm connection
- External idler shaft mount for pantograph configurations
- Insulated ground for use on metal, GRP, or wooden boats
- CE approved and EMC protected
- Easy installation and wiring
- Compatible with a wide range of arms and blades
- 3-year warranty on motor and arms; 1 year on blades
| Name | Description |
|---|---|
| Manufacturer Part No | RC531035 |
| Voltage | 12V |
| Torque | 25Nm |
| Bulkhead Thickness (mm) | 78mm |
| Bulkhead Thickness (in.) | 3.1 in. |
| Sweep Angle Adjustment | 45° to 110°, stepless slot adjustable |
