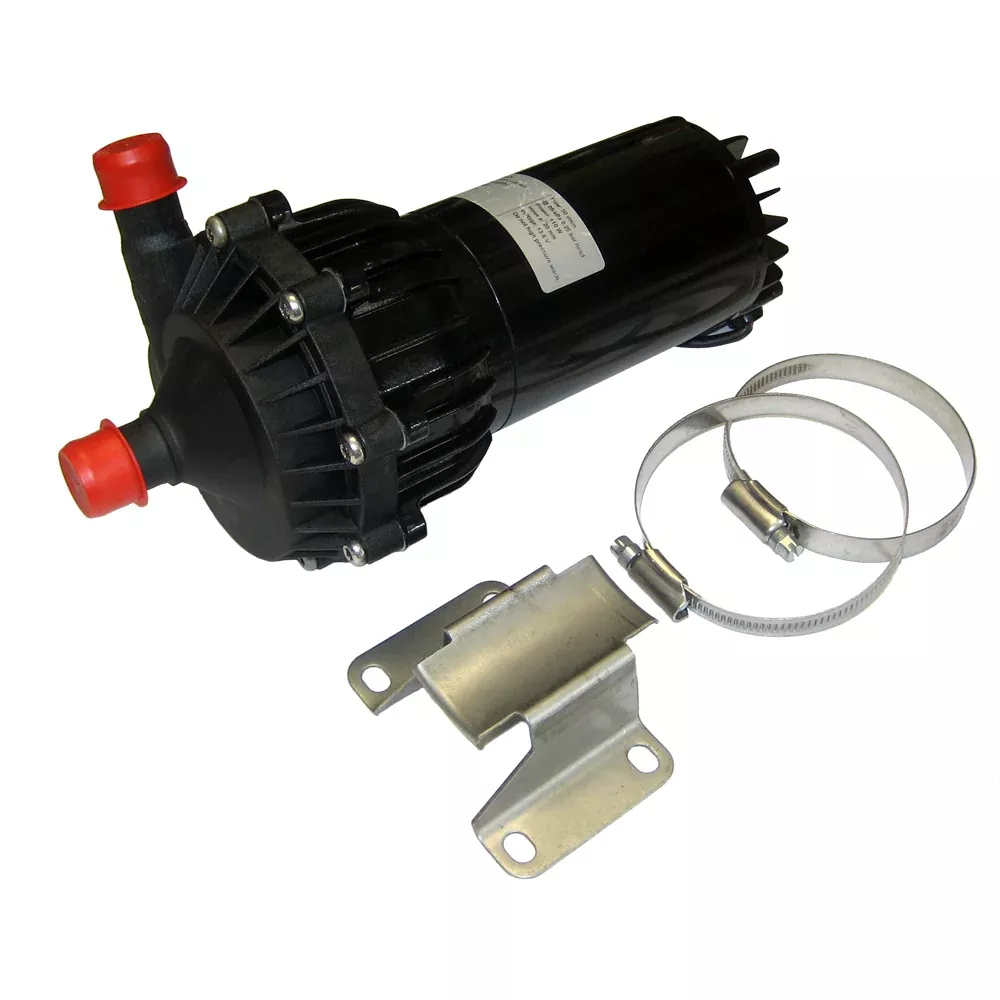

CM90P7-1 13.6V Circulation PUMP D20
CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.
Specifications:
- System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar
- Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water
- Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor
- Dry running: 30 minutes
- Dimensions: 244mm L x 120mm W x 150mm H
- Weight: 6.6lbs
- Capacity: 17.2 GPM
- Ports: 3/4″
Features & Specifications
- Manufacturer Part Number: 10-24750-09
- UPC: 7330717013172
- Dimensions: 11 × 7 × 6
- Category: Marine Plumbing & Ventilation | Washdown / Pressure Pumps
- Gallons Per Minute = 17.2 GPM | Volts = 12v
