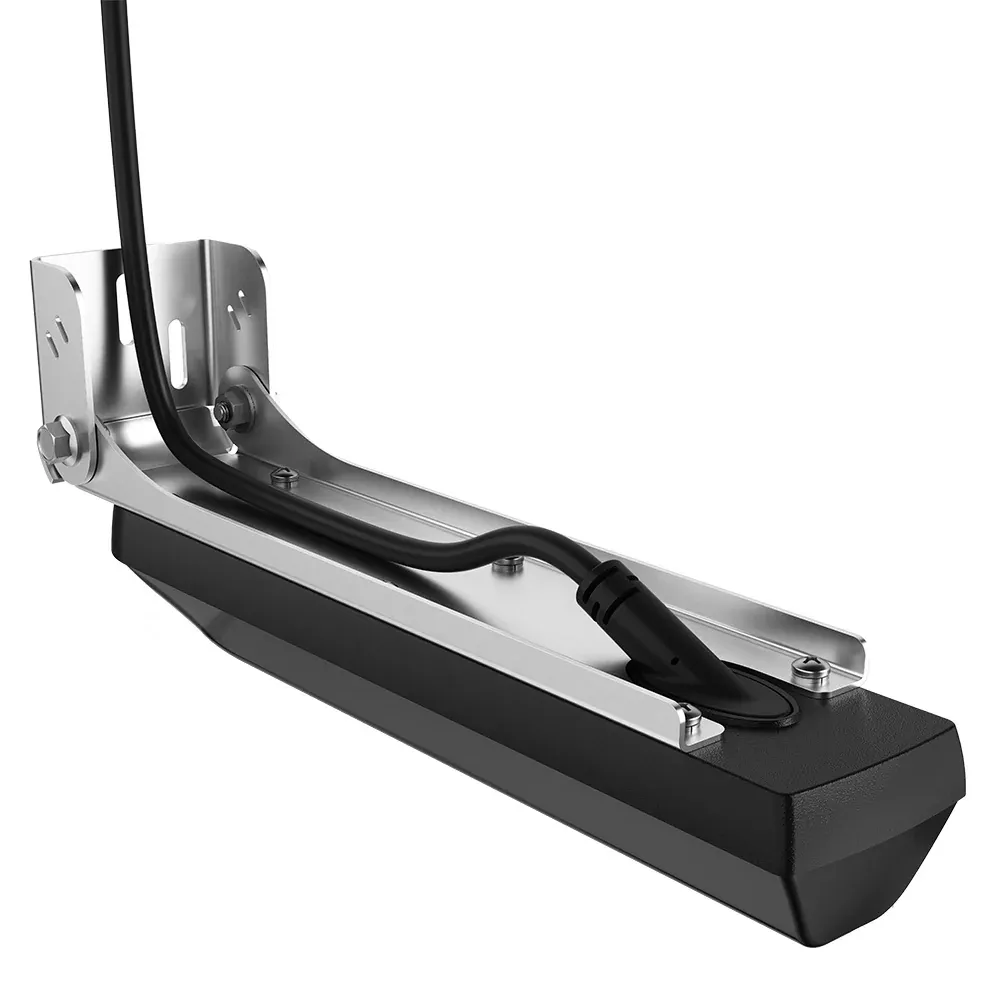

Active Imaging HD™ 2-in-1 Transducer
Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 2-in-1 sonar. Get the most precise images of fish and structure from high-frequency (up to 1.2MHz) SideScan and DownScan Imaging™, plus a FishReveal™ DownScan view that makes fish easier to see below the boat.
Features:
- High frequency (up to 1.2MHz) SideScan and DownScan Imaging deliver the most precise images of fish and structure
- FishReveal™ DownScan view makes fish identification easy
- Supports 455/800kHz and 455/1.2MHz frequencies
- The perfect complement for a factory-installed CHIRP transducer
- Smart transducer design boosts signal clarity
- Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon en Elite FS
Features & Specifications
- Manufacturer Part Number: 000-16063-001
- UPC: 9420064130375
- Dimensions: 14 × 10 × 4
- Category: Marine Navigation & Instruments | Transducers
- Cable Length (Feet) = 25′ | Chirp = No | Imaging = Down/Side | Mounting Style = Transom | Pins = 9 | Speed Included = No | Temperature = Yes
Accessories
- 38337
- 99-006
