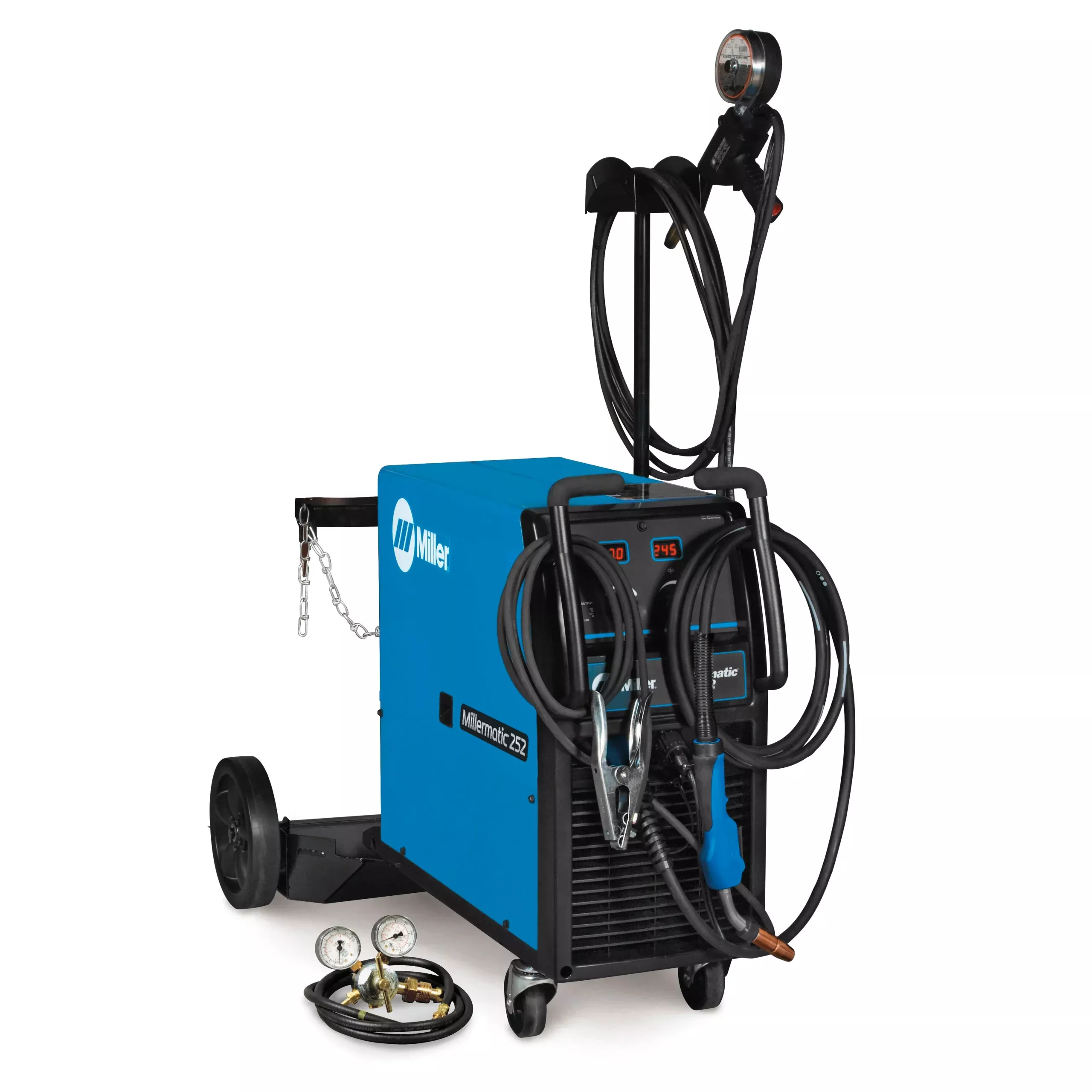

The Millermatic 252 MIG welder is an all-in-one MIG welding package. Welds material from 22 gauge to 1/2 in thick in a single pass. This package includes the Spoolmatic 30A (130831), dual cylinder cart, and cable rack.
Highest Output In Its Class
The Millermatic 252 boasts a 40% Duty Cycle at 250A allowing you to weld longer on high-end applications. 60% Duty Cycle at 200A.
Digital Front Panel
Millermatic 252’s large interface with built-in digital timers enables the operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burn back, spot/delay (stitch) timer menu.
Auto Gun Detect
MIG Welding just got a whole lot simpler! The Millermatic 252 allows the operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun.
Push-Pull Gun Direct Connection
Superior aluminum MIG welding with direct connection of optional push-pull guns and spool guns. Direct connect your XR push-pull guns or Spoolmate 200. No extra module to buy or install.
Line Voltage Compensation
This will keep power constant even if power input varies by 10%.
Active Arc Stabilizer
The Active Arc Stabilizer minimizes weld cleanup, and provides excellent starts proven superior to the competition.
Fan-On-Demand
Machine cooling system only operates when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.
Angled, Dual-Gear Driven, Cast Aluminum Drive System
Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.
EZ-Change Low Cylinder Rack
Allows operators to easily roll cylinders on and off of rack – no need to lift cylinders.
EZ-Access Consumable Compartment and Parameter Chart
The Millermatic 252 allows for parameters to be set the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables.
