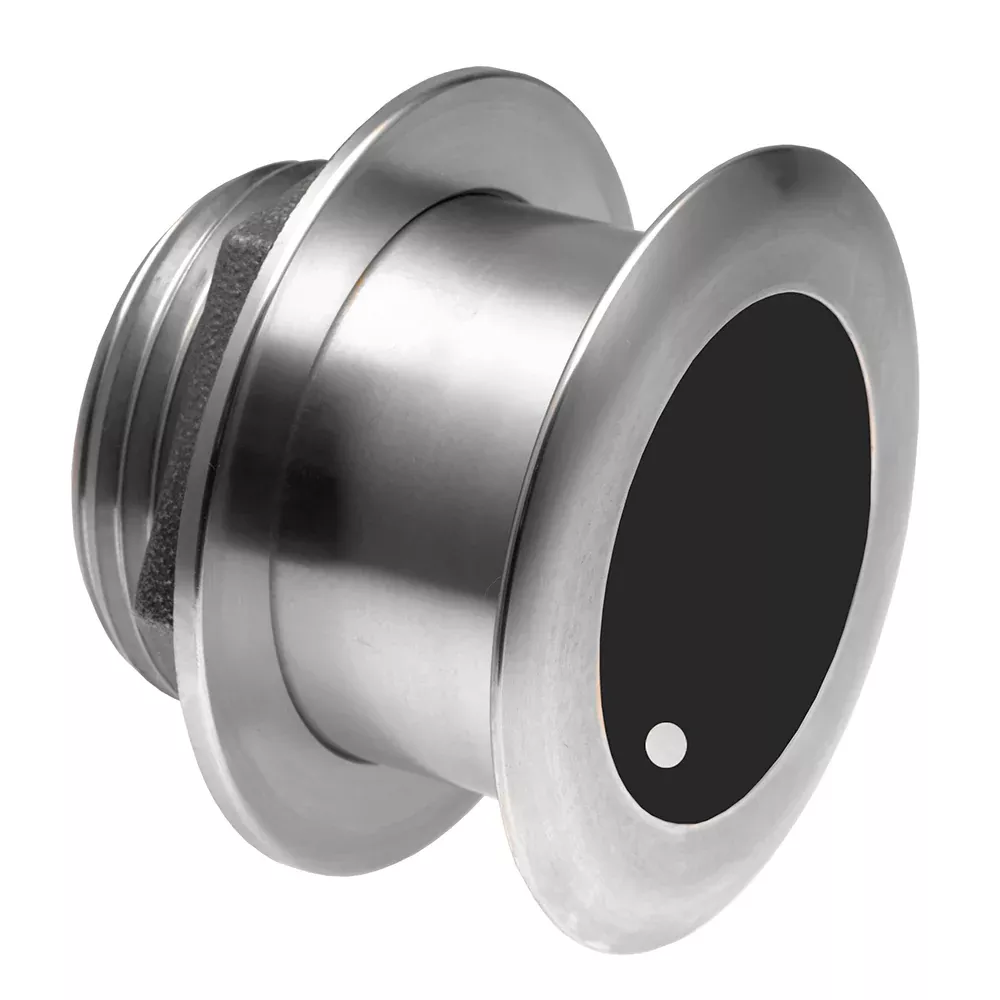

xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer – 20° Element – 9-Pin
Features:
- Black 9-Pin Connector
- Cable Length – 10M (33.0′)
- SS175M – 1-Internal Broadband Ceramic Assembly
- Depth & fast-response water-temperature sensor
- Stainless Steel transducer housing
- Hull Type: Steel or aluminum
- Boat Size: Up to 11M (36’)
- Useable shaft length 71mm (2.80”)
Medium-Frequency (M)
- Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency
Features & Specifications
- Manufacturer Part Number: 000-13779-001
- UPC: 9420024161906
- Dimensions: 11 × 10 × 8
- Category: Marine Navigation & Instruments | Transducers
- Pins = 9 | Mounting Style = Thru-Hull | Imaging = Standard | Chirp = Medium | Cable Length (Feet) = 33′ | Temperature = Yes | Speed Included = No
