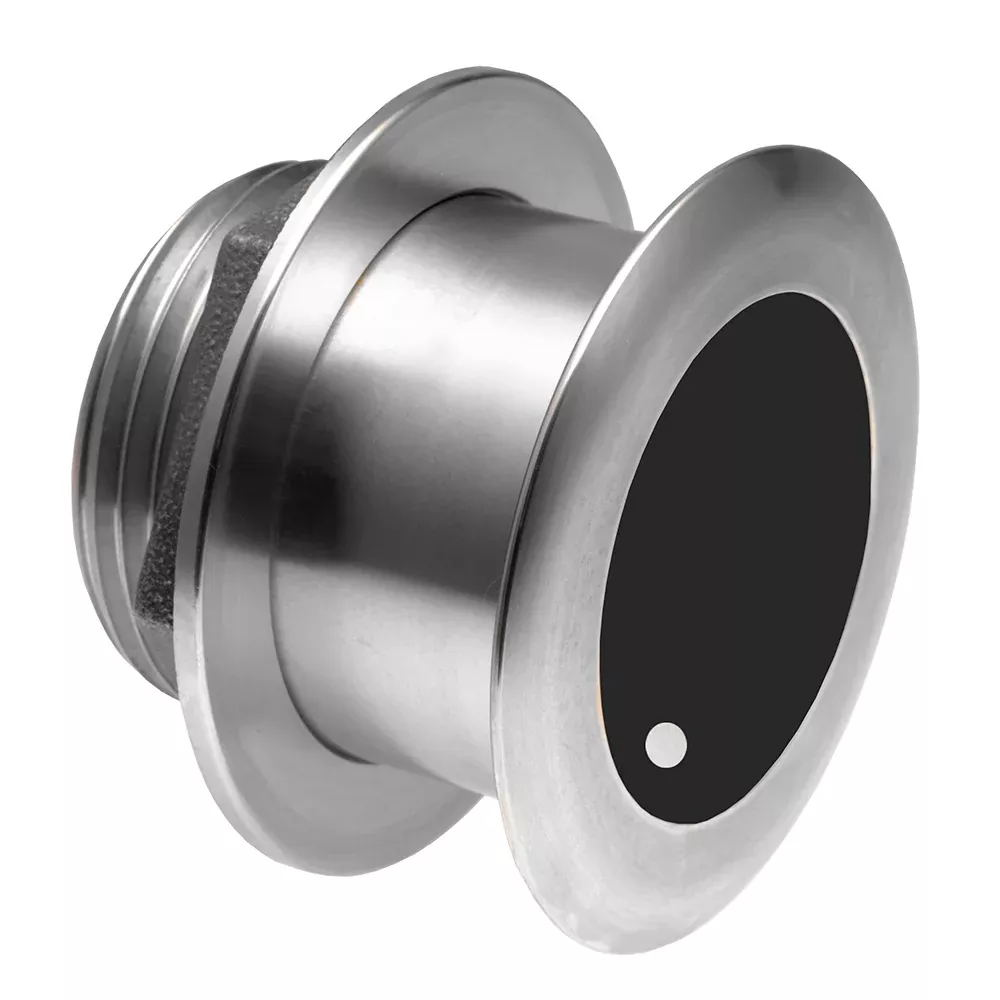

xSonic SS175H-W/12 Stainless Steel Thru-Hull Transducer – 12° – 9-Pin
The SS175H-W is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8M (25′) in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths.
Features:
- 130-210 kHz High CHIRP with wide 25° beam for excellent fish targets
- Up to 310M (1000′) range with High CHIRP
- 1 internal broadband ceramic
- Thru-hull with stainless steel housing
- Suitable for fiberglass and wood hulls
- Ideal for sportfishing and commercial vessels up to 8M (25′)
- Recommended for use with Simrad NSSevo3 Lowrance HDS Gen3 multifunction displays
Features & Specifications
- Manufacturer Part Number: 000-13781-001
- UPC: 9420024161920
- Dimensions: 12 × 10 × 8
- Category: Marine Navigation & Instruments | Transducers
- Speed Included = No | Pins = 9 | Mounting Style = Thru-Hull | Imaging = Standard | Chirp = High Wide | Cable Length (Feet) = 33′ | Temperature = Yes
Accessories
- 66670|67635|67636|67637|68852|68853|68854|70154|70155|70156|70157|70158|70159|70160|70161|70162|70163|70164|70165|70167|70177|70182|70184|105449
- 000-13977-001|300|302|301|320|321|322|1030|1031|1032|1033|1034|1035|1036|1052|1055|1169|1170|1171|1173|1160|1161|1162|000-16295-001
