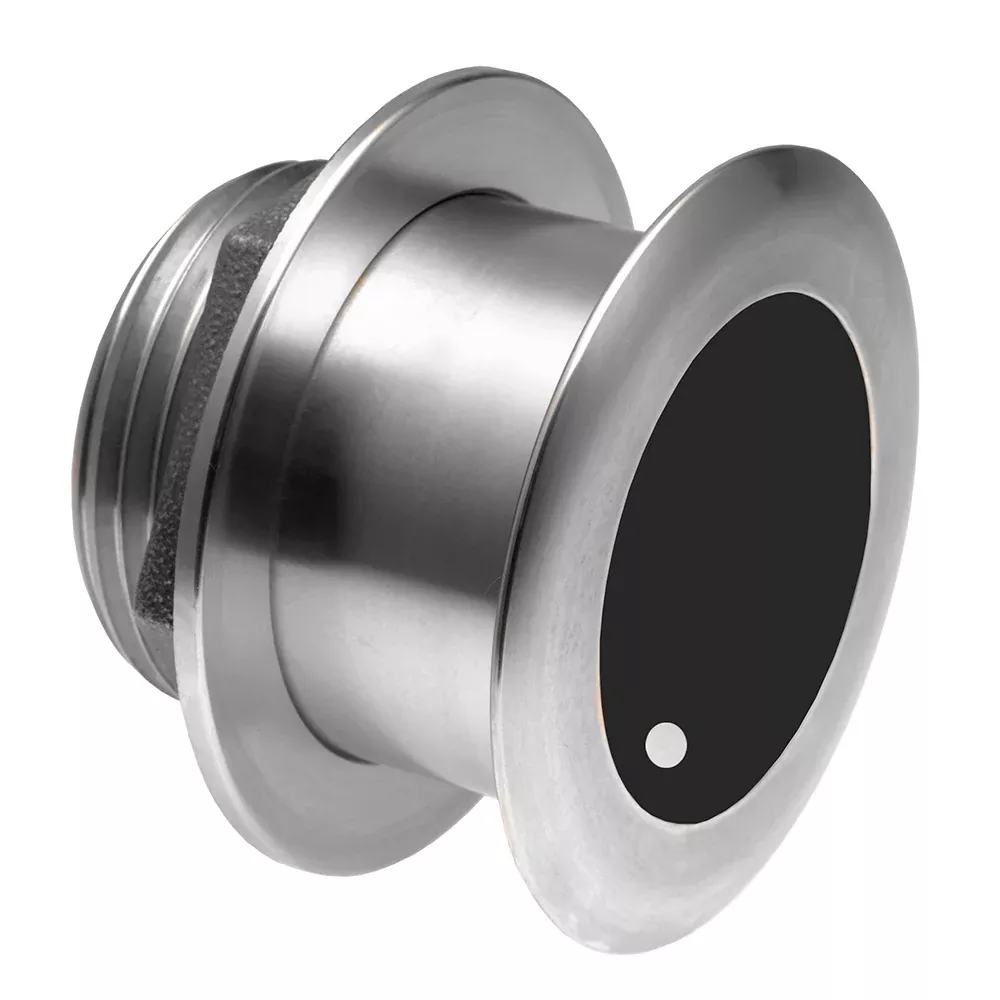

xSonic SS175H-W/20 Stainless Steel Chirp Transducer – 20° 1KW Tilted Element – 9 Pin Connector
SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it’s possible to distinguish between individual bait Fish, game Fish, and underwater structures.
*This Transducer is designed for smaller boats up to 36 feet (11 m).
Features
- Frequencies: 130-210 kHz @ 25° constant beamwidth
- 16° – 25° Deadrise
- 300m+ Usable Depth
- 6m+ or large Boat size with Steel or Aluminum hulls
- Depth & Temperature
- CHIRP Technology
- High-Performance
- Stainless Steel
- Exclusive Transducer ID
- 9-Pin Connector, 10M Cable
Features & Specifications
- Manufacturer Part Number: 000-13782-001
- UPC: 9420024161937
- Dimensions: 12 × 11 × 8
- Category: Marine Navigation & Instruments | Transducers
- Temperature = Yes | Speed Included = No | Mounting Style = Thru-Hull | Imaging = Standard | Chirp = High Wide | Cable Length (Feet) = 33′ | Pins = 9
