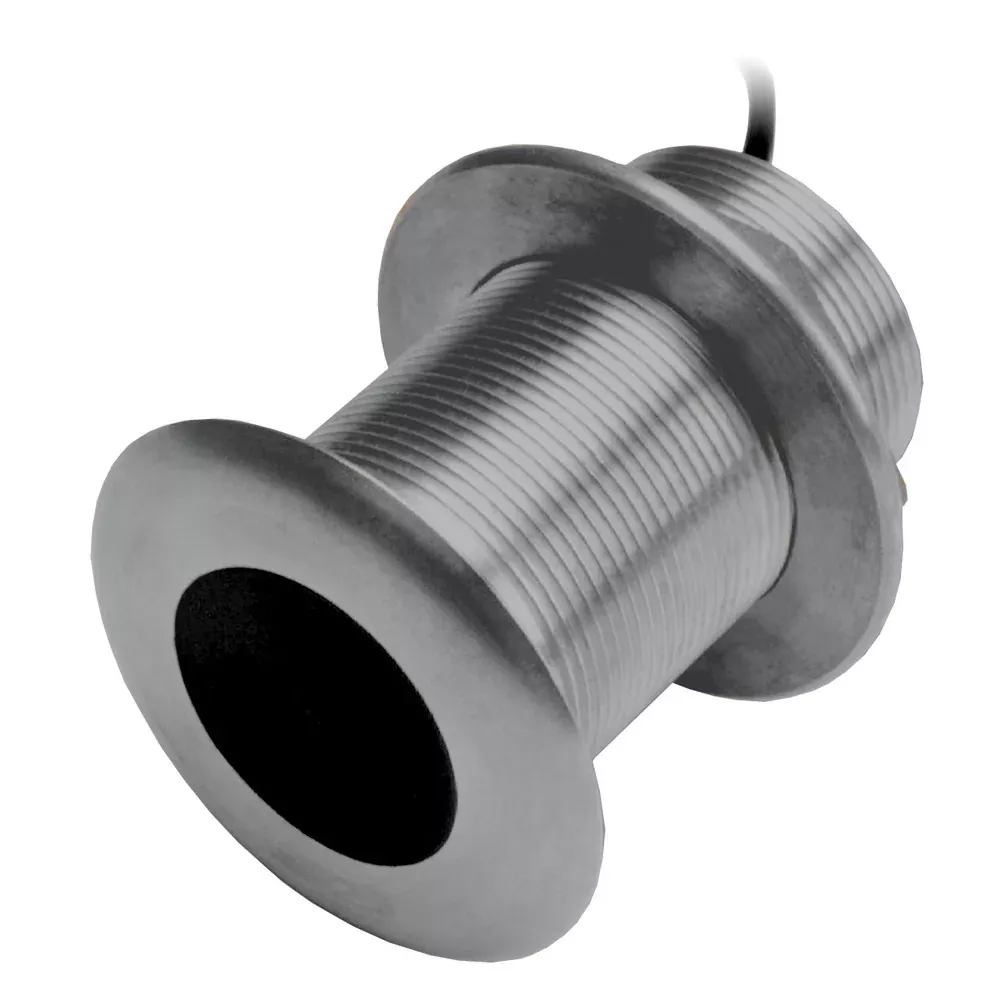

xSonic SS75M 20° Tilted Element TH Transducer – 600W – Stainless Steel
The SS75M is a Stainless Steel, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Medium Frequency: CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.
The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.
Features & Specifications
- Manufacturer Part Number: 000-13910-001
- UPC: 9420024162651
- Dimensions: 12 × 8 × 5
- Category: Marine Navigation & Instruments | Transducers
- Temperature = Yes | Speed Included = No | Pins = 9 | Chirp = Medium | Mounting Style = Thru-Hull | Cable Length (Feet) = 33′ | Imaging = Standard
