Vertical-mount 0170 Series navigation lights for vessels under 20 meters, with incandescent and LED configurations.
Manufacturer Features
- Certified for sail or power-driven vessels under 20 meters
- Black polymer, white polymer, or chrome-plated-brass construction depending on model
- Two-nautical-mile side-light visibility
- LED models use clear lenses when not illuminated and operate with low heat
Selected Configuration
| Manufacturer MPN | Configuration | Specifications |
|---|---|---|

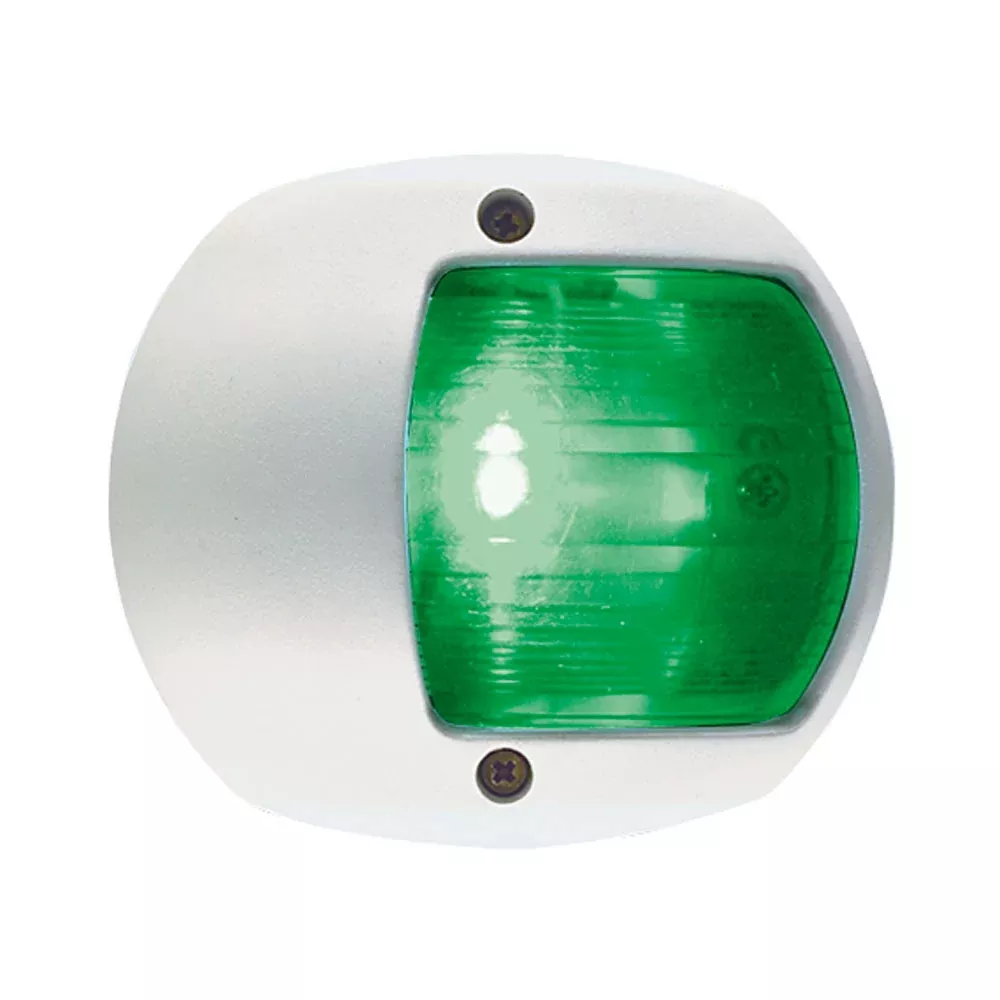

| 0170WSDDP3 | LED green side navigation light – white polymer | LED; 12 V; Visibility: 112-1/2°; 2 nm; Height: 3-5/8″; Width: 4-1/8″; Screw size: 10 |
Other Manufacturer Options in This Series
| Manufacturer MPN | Configuration | Specifications |
|---|---|---|
| 0170WSDDP4 | LED green side navigation light – white polymer | LED; 24 V; Visibility: 112-1/2°; 2 nm; Height: 3-5/8″; Width: 4-1/8″; Screw size: 10 |
Technical Information
- 12-volt and 24-volt configurations
- Model-specific lens color, visibility arc, wattage, and amperage
- Number 10 mounting screws
Important Notes
- The incandescent 0170BB0 page identifies the product for A-16 replacement use on older vessels; preserve that limitation during final approval.
Features & Specifications
- UPC: 0085226350771
- Dimensions: 8 × 6 × 3
- Lens Color = Green | Visible Range (Miles) = 2nm | Housing = White | Voltage – Input Range (Volts) = 12v | LED = Yes
