Cast-bronze thru-hull connection for hose, offered in plain-bronze and chrome-plated-bronze finishes.
Manufacturer Features
- Cast bronze construction
- Plain or chrome-plated finish
- Machined flange with bedding-compound retention groove
- Neck threaded close to the flange
Selected Configuration
| Manufacturer MPN | Configuration | Specifications |
|---|---|---|

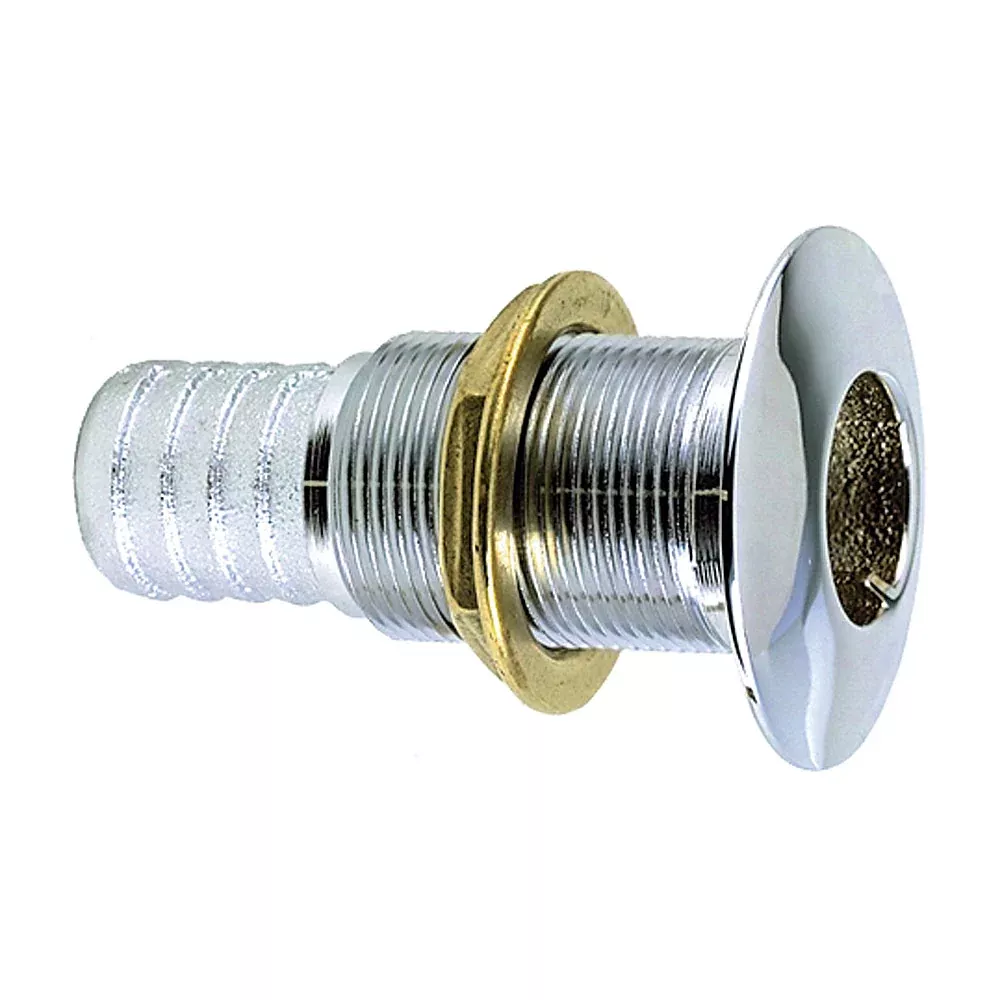

| 0350005DPC | 3/4″ chrome-plated-bronze hose thru-hull | Mounting hole: 1″; Maximum hull thickness: 1-5/8″; Flange O.D.: 1-7/8″ |
Other Manufacturer Options in This Series
| Manufacturer MPN | Configuration | Specifications |
|---|---|---|
| 0350004DPC | 5/8″ chrome-plated-bronze hose thru-hull | Mounting hole: 13/16″; Maximum hull thickness: 1-1/16″; Flange O.D.: 1-1/2″ |
| 0350006DPC | 1″ chrome-plated-bronze hose thru-hull | Mounting hole: 1-5/16″; Maximum hull thickness: 1-3/4″; Flange O.D.: 2-1/4″ |
| 035006ADPC | 1-1/8″ chrome-plated-bronze hose thru-hull | Mounting hole: 1-5/16″; Maximum hull thickness: 1-3/4″; Flange O.D.: 2-1/4″ |
| 0350007DPC | 1-1/4″ chrome-plated-bronze hose thru-hull | Mounting hole: 1-5/8″; Maximum hull thickness: 1-7/8″; Flange O.D.: 2-3/4″ |
| 0350008DPC | 1-1/2″ chrome-plated-bronze hose thru-hull | Mounting hole: 1-7/8″; Maximum hull thickness: 1-7/8″; Flange O.D.: 3-1/8″ |
| 0350009CHR | 2″ chrome-plated-bronze hose thru-hull | Mounting hole: 2-3/8″; Maximum hull thickness: 2″; Flange O.D.: 3-3/4″ |
Technical Information
- For 5/8″ through 2″ hose sizes
- Maximum hull thickness varies by size up to 2″
Important Notes
- Perko states these hose thru-hull connections are not recommended for use below the waterline under ABYC H-27.
