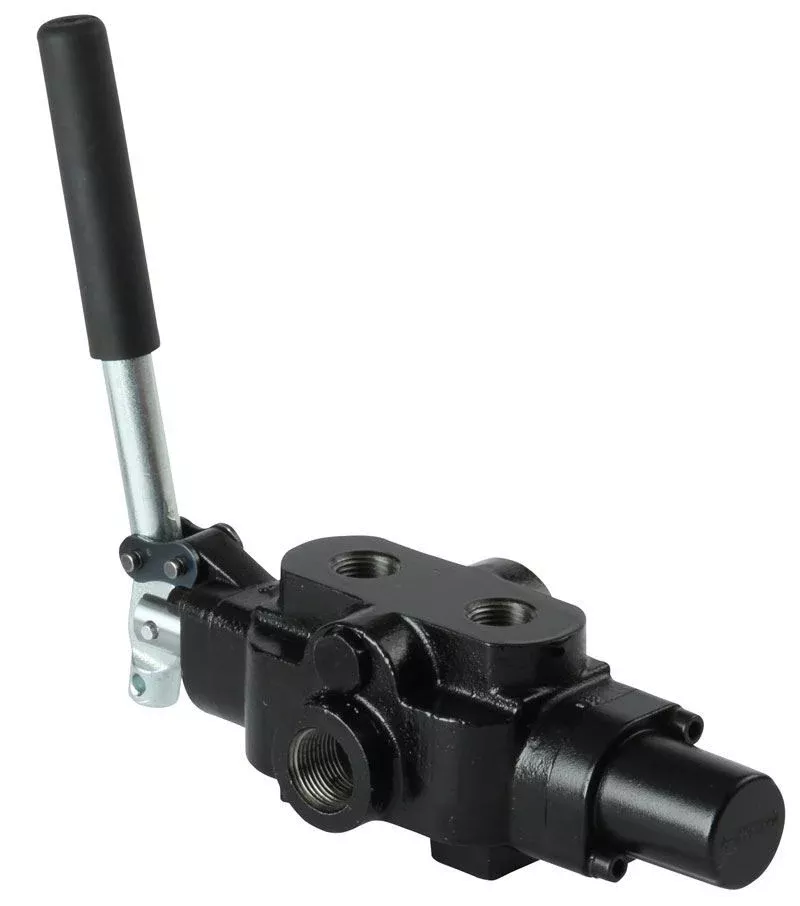

Delavan PowerMAX™ 30 GPM Log Splitter Kick-Off Control Valve. Delavan PowerMax Cylinders, Mono-Block and Kick-Off Valves are designed and manufactured to meet the most demanding requirements
Features:• Constructed of high tensile strength gray cast iron• Built-in adjustable relief valve• Hard chrome plated spool
Recommended Hydraulic System:• Maximum tank pressure: 500 PSI• Maximum operating temperature: 180˚F• Recommended system filtration: 10 micron
Product Manual
Specifications:• Maximum GPM: 30• Maximum operating pressure : 3,625 PSI• Spool action is spring center/hydraulic kick-off• Built-in relief valve preset at 2,250 PSI• Kick-off pressure is non-adjustable, preset at 800 PSI• Handle can be installed in “up” or “down” position• Inlet / Outlet ports on the side: 3/4” NPT• Top ports going to the cylinder: 1/2” NPT • Packaging: Small box• Warranty: 3 Years from date of purchase• Weight: 8.95 lbs
