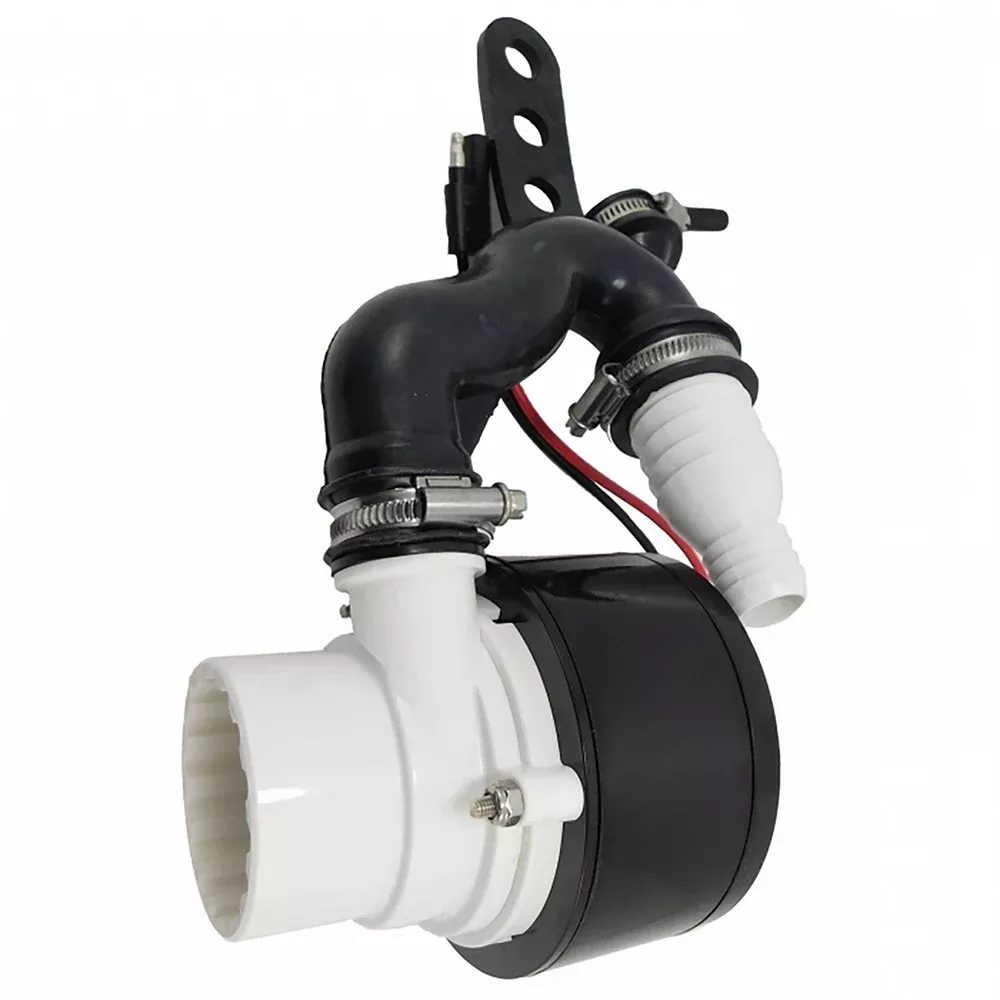

Marine Elegance Discharge Pump Assembly – 24V
Raritan’s Marine Elegance Discharge Pump Assembly, 24V.
In the Box:
- M23A 10 Lockwasher SS (5)
- 1108A 10-32 SS Nut
- 161123 Macerator Blade
- 31-102 Motor Shaft Seal
- 221110 Discharge Pump Seal Plate
- 221105 O-Ring
- 161115 Impeller
- 221115 Discharge Pump Macerator Housing
- 31-114 Lock Nut 10-32 W/Nylon(3)
- 221012 Discharge Motor 12 V or 221024 Discharge Motor 24V
- 221141W Discharge Hose
- 221135W Joker Valve (2) (Also includes 24)
- 221145 Discharge Adapter Fitting
- 221146 Joker Valve Insert
- 221160 Discharge Hose Clamp (small)
- 221165 Discharge Hose Clamp (large)
- VLVE Vent Valve Assembly
- FC001 Vent Valve Hose Clamp
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Features & Specifications
- Manufacturer Part Number: 2210024
- UPC: 0085462024962
- Dimensions: 11 × 8 × 8
- Category: Marine Plumbing & Ventilation | Accessories
