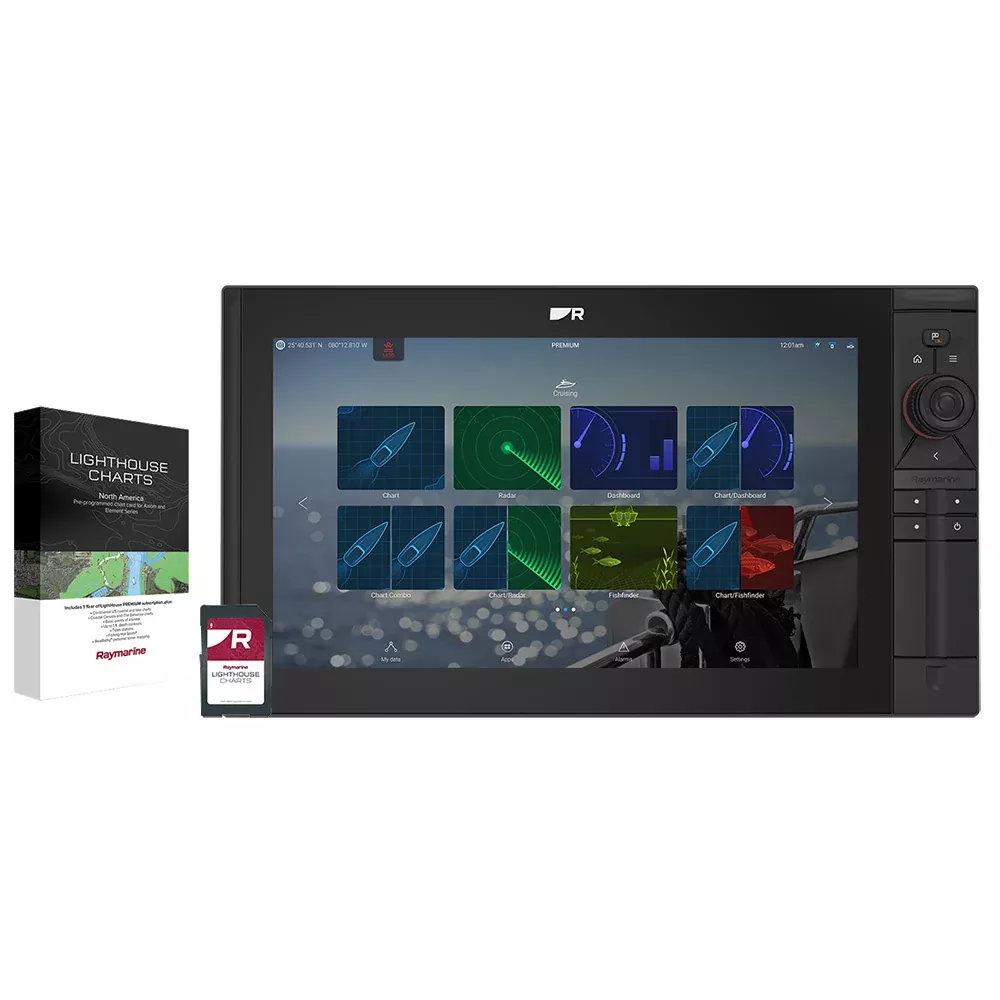

Axiom 2 Pro 16 S 15.6″ Chartplotter/Fishfinder with Lighthouse North America Chart – No Transducer
Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro S chartplotters feature built-in single channel High CHIRP sonar- the ideal sonar solution for reliable depth sounding and underwater exploration. Available in 9, 12, or 16-inch display sizes, Axiom Pro 2 is the perfect cruising companion.
Features:
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
- Integrated High CHIRP sonar with transom, in-hull and low-profile through-hull CPT-S series transducer options
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own Axiom 2 Pro system with multiple networked Axiom displays
- Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems
Specifications:
Connections:
- Digital Video & Audio Out Connection: HDMI Out Micro connector type D’
- External GPS Antenna Connection: TNC connector
- Accessory connection: USB Micro B (rear – charging, external storage device or RCR-SD/USB Accessory (A80440)
- Ethernet connection: RayNet (10/100/1,000 Mbits/s) x2
- External storage: MicroSD card slot x2 (front)
- Chart options: Navionics+ or Navionics Platinum or C-map 4D Software
- Lighthouse North America Chart included
- NMEA 2000 connection: DeviceNet connector
- Analog video connections: BNC Analog video input (on power cable)
- Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
- Transducer connection: 25-pin RealVision type connector (requires adaptor cable)
- Audio connections: Left and Right RCA connectors via Power/Video/Audio cable
GPS:
- GNSS compatibility: GPS, Galileo, GLONASS, Beidou
SONAR:
- Channels: CHIRP conical sonar ( Uses CPT-S Transducers with adapter cable A80490)
- Depth range: 0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
LIGHTING:
Illumination: Axiom 2 Pro 9 1300 nits / 1300 cd/m2, Axiom 2 Pro 12 & 16 1200 nits / 1200 cd/m2
STORAGE:
- Internal storage: 64 GB Solid State
Features & Specifications
- Manufacturer Part Number: E70657-00-102
- Dimensions: 22 × 14 × 10
- Category: Marine Navigation & Instruments | GPS – Fishfinder Combos
- Cartography Brand = Navionics/C-Map | Screen Size = 16″ | Touchscreen = Yes | Transducer Included = No
