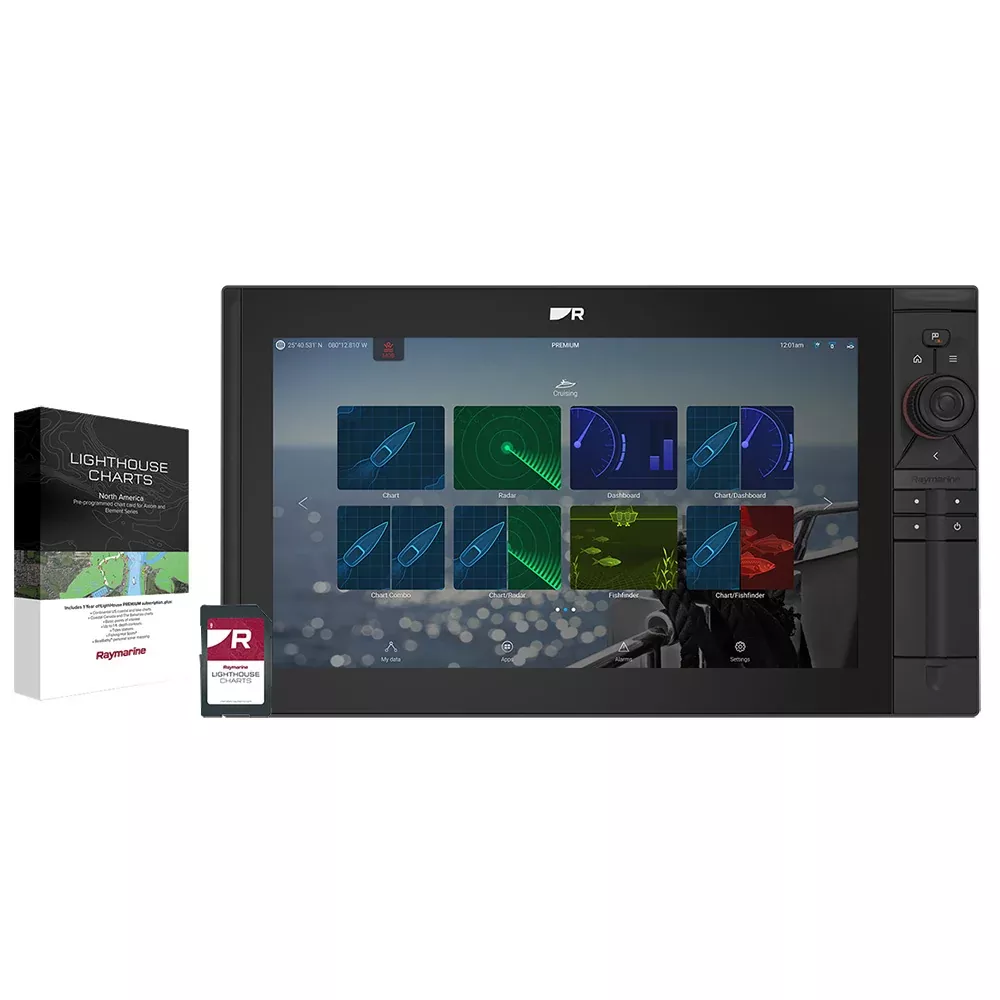

Axiom 2 Pro 16 RVM Chartplotter/Fishfinder – Lighthouse North America Chart – No Transducer
Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro RVM chartplotters feature built-in wide-spectrum CHIRP with RealVision MAX technology. RealVision MAX ups your fish-finding game with DownVision, SideVision, and 3D sonar upgraded with increased range, better resolution, and sharper fish targets.
Features:
- Includes preloaded LightHouse Charts North America chart card
- Includes 1 Free year of LightHouse Charts Premium Subscription
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
- Find more fish with built-in RealVision MAX CHIRP and dual channel 1kW CHIRP sonar
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own Axiom 2 Pro system with multiple networked Axiom displays
- Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment system
What’s in the Box
- Display unit
- User Configurable Keypad
- Suncover
- Gasket
- Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
- DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
- Mounting fixings x 4
- Documentation
- Power/Video/Audio cable 1.5 m (4.92 ft)
Features & Specifications
- Manufacturer Part Number: E70658-00-102
- UPC: 0723194000000
- Dimensions: 22 × 14 × 10
- Category: Marine Navigation & Instruments | GPS – Fishfinder Combos / Electronics | Fishfinders, Chartplotters, Radars, Autopilots, etc.
- Cartography Brand = Navionics/C-Map | Screen Size = 16″ | Touchscreen = Yes | Transducer Included = No
- More Power: Get underway faster with Axiom 2 Pro?s lighting-fast 6-core processor
- HybridTouch: Plan and plot your course with fluid touchscreen control and take command with confident keypad control when seas are rough
- Customize: An interchangeable keypad gives you a choice an autopilot controls or user-programmable soft keys
- HydroTough? Displays: Engineered to perform in extreme environments. HydroTough? nano-coating technology repels water for reliable touchscreen control and enhances colors and sunlight visibility
- Navigate Smarter: Chartplotter, sonar, radar, autopilot, and video integrated together seamlessly with the super easy LightHouse 4 operating system
- Automatic Display Brightness: An ambient light sensor automatically adjusts display brightness for day and evening lighting conditions
- Advanced Engine Integration: Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines
- Network Like a Pro: Build a system with multiple Axiom displays and expanded video options, including HDMI output for remote displays and TVs
- Find More Fish with RealVision MAX: RealVision MAX upgrades DownVision, SideVision, and 3D sonar with increased range, better resolution, and sharper fish targets
- Display: 16″
- Model: Axiom 2 Pro 16 RVM w/1kW Sonar, DV, SV and RealVision 3D Sonar & LightHouse North America Chart
