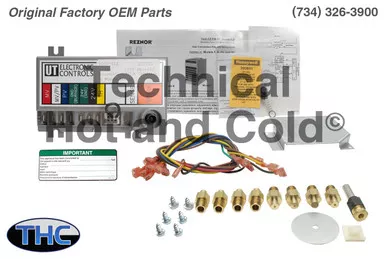

Reznor 99253 Replacement Part
Includes:
- (1) – Regulator Spring Kit (98720)
- (8) – Burner Orifice 1.65mm (96344)
- (1) – Pilot Orifice (9733-410 (Black) (98695)
- (1) – Ignition Control w/ 100% Lockout (257010)
- (1) – Black Wire Assembly (133108)
- (1) – Brown Wire Assembly (98215)
- (1) – Blue Wire Assembly (98214)
- (1) – Green Wire Assembly (257074)
- (1) – Brown Wire Assembly (98215)
- (1) – Red Wire Assembly (173303)
- (1) – Red Wire Assembly (257014)
- (1) – Yellow Wire Assembly (122655)
- (1) – Black Wire assembly (173307)
- (1) – Ignition Controller Mounting Bracket (257012)
- (2) – Bracket Screws 10LGM x 3/8″ Long (96426)
- (4) – Controller Mounting Screws 8 x 3/8″ Long (195638)
- (1) – Propane Gas Disk (37752)
- (1) – Conversion Tape (64391)
- (1) – Wiring Diagram Label (257478)
- (1) – Instructions (CP-F/B-GC)
Specifications
- Conversion: Natural Gas to Propane
- Black Wire Assembly (133108) – “MV”
- Brown Wire Assembly (98215) – “MV/PV”
- Blue Wire Assembly (98214) “PV”
- Green Wire Assembly (257074) “GND Burner”
- Brown Wire Assembly (98215) “24V GND”
- Red Wire Assembly (173303) – “24V”
- Red Wire Assembly (257014) – “SENSE”
- Yellow Wire Assembly (122655) – NOT USED IN THIS APPLICATION
- Black Wire assembly (173307) – “TH”
Replaces Old Reznor Part Numbers
- There are no older part numbers.
Other Part Numbers
1003-514, 257010, 1547, UT, Electronic Controls, 393691, 1552, 257478, REZNOR<RZ099253, B/E130/250 AHE
FitsModels:
(Press ctrl + F to find model number below.)
F/FE/B/BE 130, 165, 200, 250
