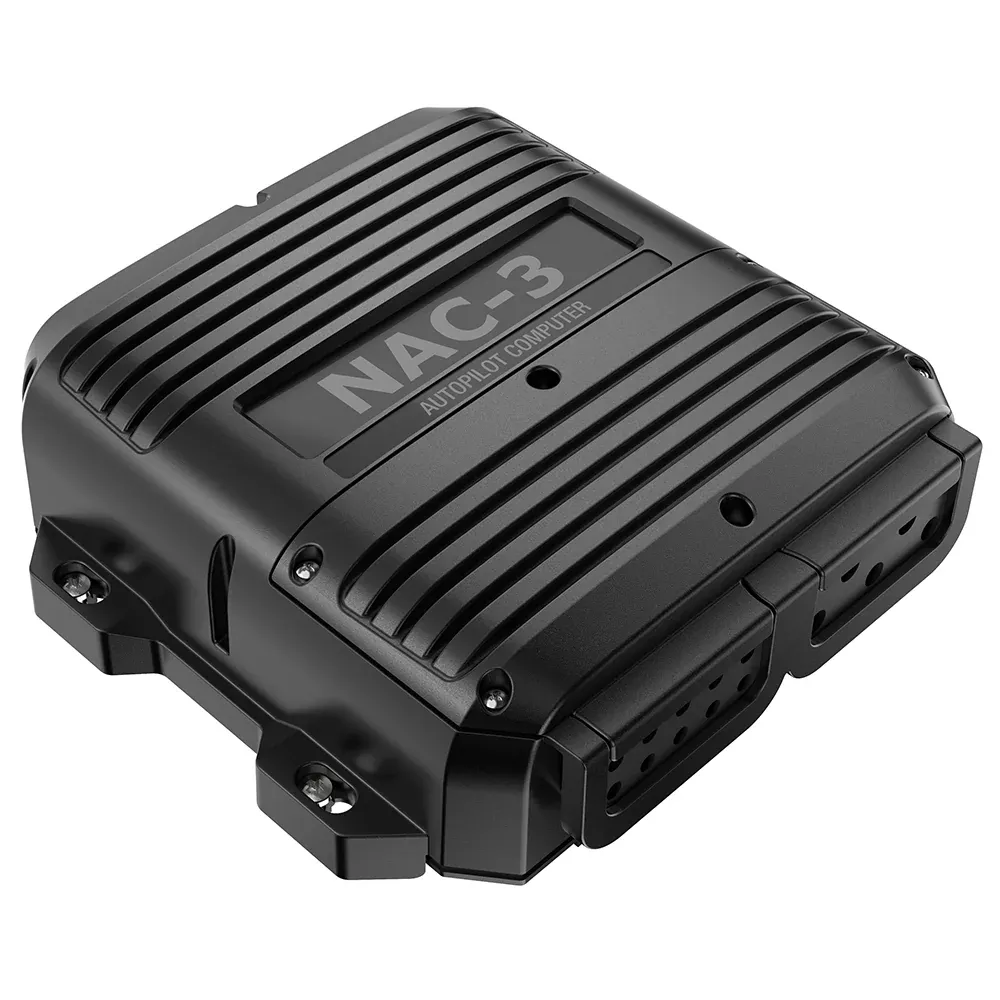

NAC-3 High Current Course Computer
The NAC-3 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33′) or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 Amps continuous/50 Amps peak).
Features:
- Reliable autopilot performance based on Simrad Continuum steering technology
- Recommended for boats above 10M (33′) in length
- High-current output of 30 Amps continuous, 50 Amps peak
- Clutch output (3 Amps maximum)
- Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
- Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
- Supports Simrad RF25 and RF300 rudder feedback units
- NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
- NMEA 0183® input
Features & Specifications
- Manufacturer Part Number: 000-13250-001
- UPC: 9420024154397
- Dimensions: 10 × 9 × 5
- Category: Marine Navigation & Instruments | Autopilots
- Type = Parts
Accessories
- 14781|30931|30933|48657|62229|65971
- 20193744|119-88|119-79|000-10756-001|000-13289-001|000-13894-001
