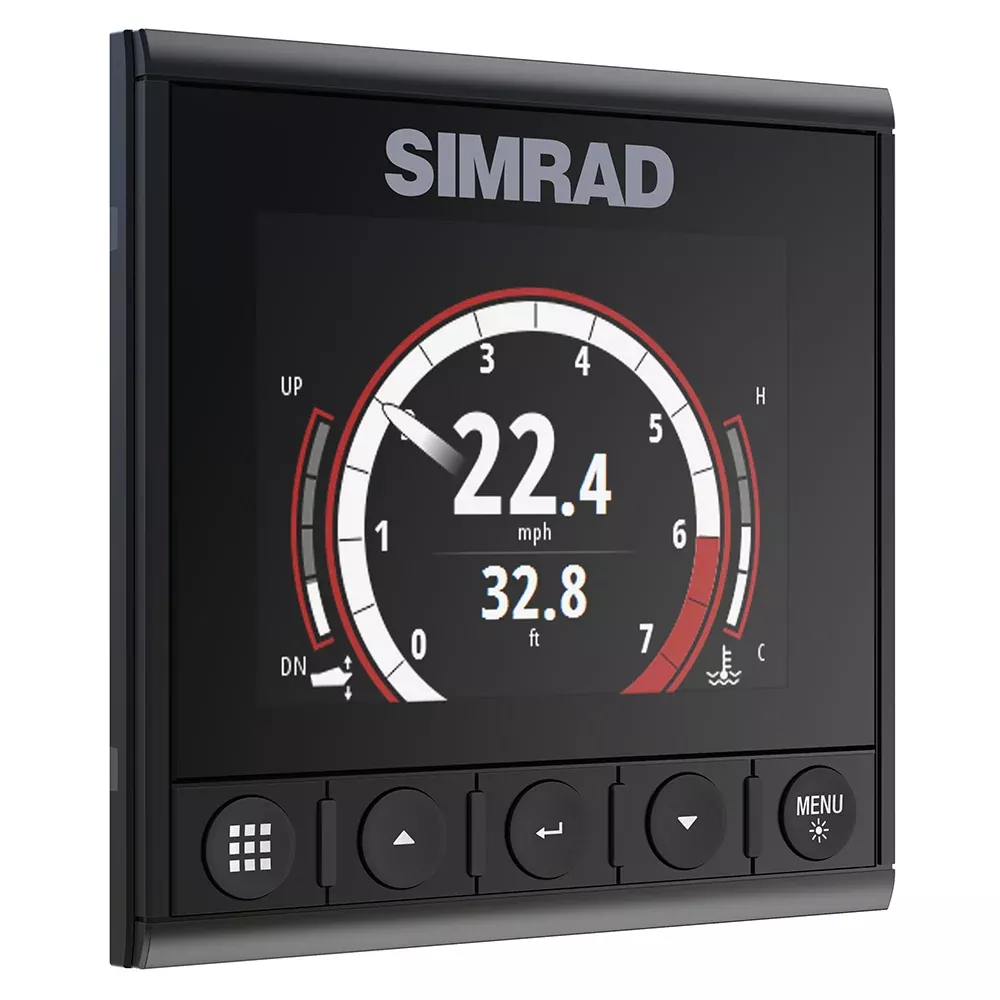

IS42 Smart Instrument Digital Display
The IS42 is a smart multi-purpose instrument featuring a full color display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.
Features:
- Optically bonded 4.1″ color display
- Multi-purpose digital instrument
- Display wind, speed, depth, engine data, autopilot status and more
- Intuitive operation
- Easy installation
- Add an OP12 keypad for full Simrad autopilot control
- Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
- Low-profile glass helm design
- Low power consumption
- Certified NMEA 2000® connectivity
Specifications:
- Dimensions: 118 x 115 x 28mm (4.6″ x 4.5″ x 1.1″)
- Weight: 0.32kg (0.7lbs)
- Power Consumption: 1.8 Watts (MAX)
- Network Load: 3 LEN
- Color: Black
- Display Size: 4.1″ (diagonal). 4:3 Aspect ratio
- Display Type: Transmissive TFT-LCD, bonded. White LED backlight
- Dsiplay Resolution: 320 x 240 pixels
- Illumination: White for day mode. Red, green, blue or white for night mode
- Environmental Protection, Waterproof: IPx7
- Environmental Protection, Humidity: up to 95% RH
- Compass Safe Distance:300mm (1.0″)
- Temperature Operating: -15 to +55°C (5°F to +131°F)
- Temperature Storage: -30 to +70 °C (-22 to +158° F)
Features & Specifications
- Manufacturer Part Number: 000-13285-001
- UPC: 9420024155103
- Dimensions: 9 × 6 × 5
- Category: Marine Navigation & Instruments | Instruments
- Instrument Function = Multifunction
