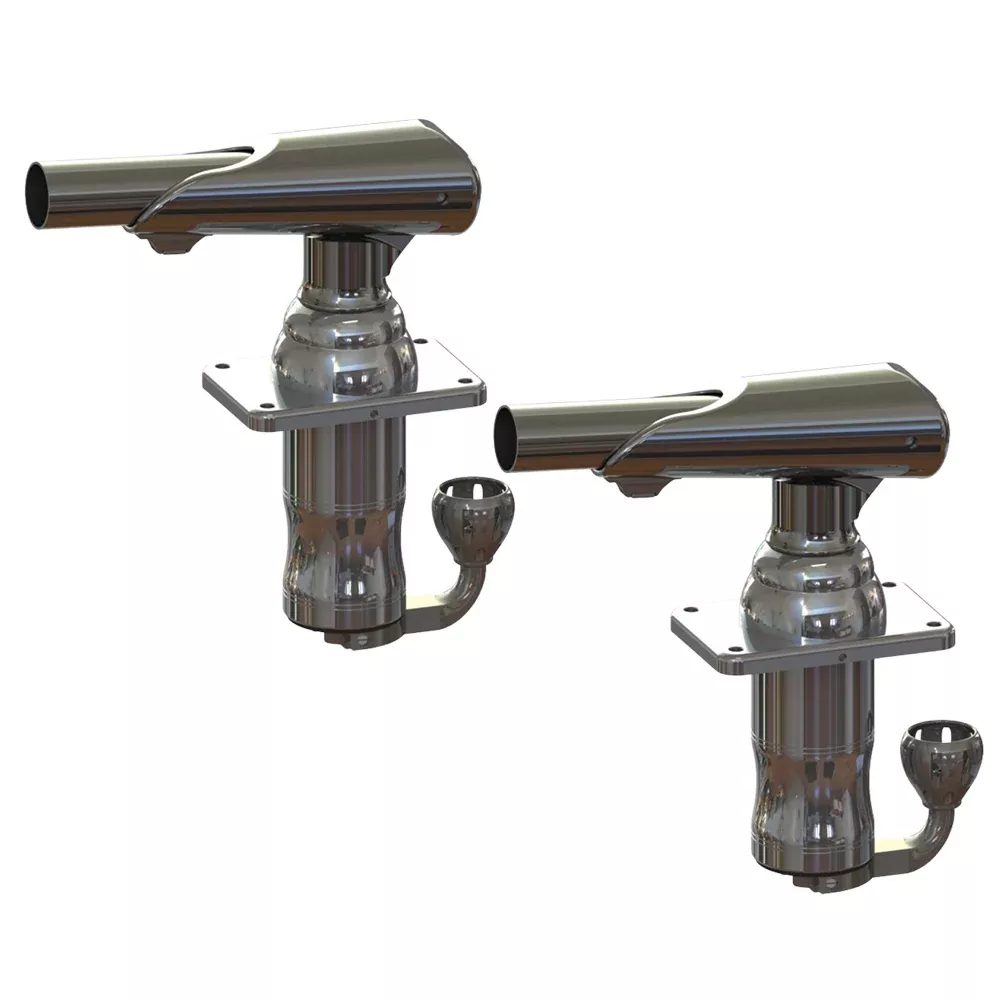

Grand Slam 300 Outrigger Mount for 1-1/2″ Outrigger
Single-Handle Operation is Here! Introducing the Grand Slam 300 – a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount that delivers enhanced safety and performance with smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles using the GS-300’s ergonomic crank handle, which locks flush into the base. The Mount’s attractive, all-metal design means no plastic components, a greater water seal, and increased protection from the elements. The GS-300 pairs with TACO’s award-winning Open Water Internal & Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22′ with an underside pin-locking connection – eliminating the need for port and starboard designations.
Features & Benefits:
PIN-Locking ARM
- No port or starboard designation
- Underside locking pin connection
- Arm lifts to 46.5º from the horizontal position for kite fishing and dock clearance
- Pairs with 1-1/2″ DIA Outrigger Poles up to 22′
- Can be used with Outrigger Base Reducer for 1-1/8” DIA poles
HANDLE
- Stainless-steel, ergonomic, single-hand crank handle with ball bearing
- Enables lift and rotation of outrigger poles from the safety of the deck
- Unique, locking flip handle
- Keeps the handle knob on the bottom when lifting or rotating the outrigger
- Provides full torque control and safety of deployment at all times
- Robust, dual-detented lifting crank handle locks flush into base
MOUNT
- Ideal for boats 25′ to 40′
- Constructed from cast stainless steel and machined aluminum for a stronger, lighter base
- Each mount weighs 15 pounds (30 pounds per pair)
- Safety detents prevent uncontrolled rotation when deploying outrigger poles
- Allows a controlled 180° rotation, if needed
- The locking head eliminates the downward creep of outrigger poles
- Equipped to handle the torque and whip generated by poles up to 22’
- Includes mounting hardware for easy installation
- The base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems
- Backing plates (BP-0300) sold separately
- 3-year limited warranty
Specifications:
- Weight: 30lbs
- Sold as a pair
Features & Specifications
- UPC: 0631164091605
- Dimensions: 23 × 18 × 7
- Category: Hunting & Fishing | Outriggers / Fishing | Outriggers & Accessories
- Ideal for boats 25′ to 40′
- Constructed from stainless steel and aluminum (No plastic components)
- Arm lifts up to 46.5? from horizontal position for kite fishing and dock clearance
- Pairs with 1-1/2″ DIA Outrigger Poles up to 22′
- Can be used with Outrigger Base Reducer for 1-1/8ǥ DIA poles
- Ergonomic, single-hand crank handle with ball bearing
- Unique, locking flip handle
- Allow a controlled 180? rotation, if needed
- Locking head eliminates downward creep of outrigger poles
- Includes mounting hardware for easy installation
- 3-year limited warrant
- Package Quantity: 1 pr.
Accessories
- 107857|107859|109640
- OI-3190CF|OI-3220CF|BP-0300BSY-1
