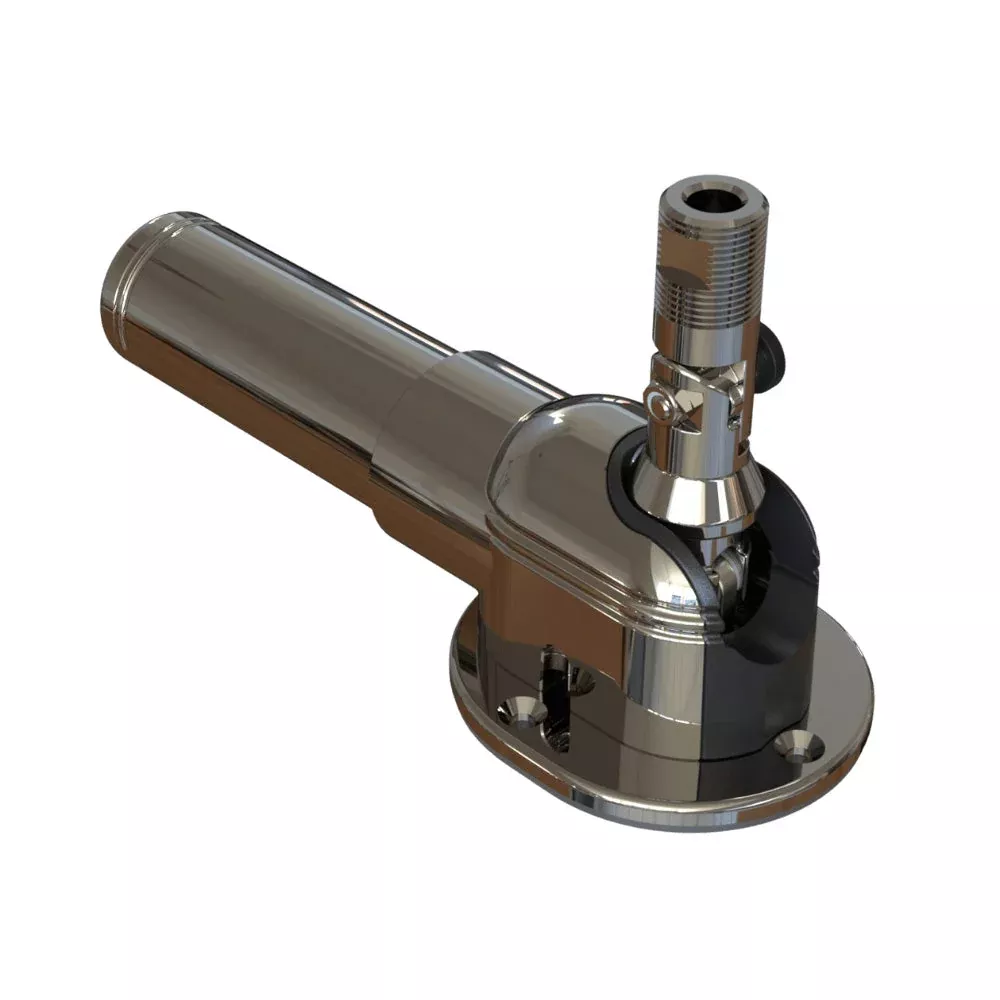

Grand Slam 860 Electric VHF Antenna Mount
The Grand Slam 850 Electric VHF Antenna Mount! Designed with safety and innovation in mind, boaters can adjust the position of their VHF antenna with the simple push of a button from the comfort of their helm. The GS-850 is a fully electric unit with hidden wires inside the hardtop. This mount easily installs to the surface of the hardtop and fits all top thicknesses.
Features:
- Standard 1”-14 thread (male) shaft to accept standard VHF antennas up to 8′
- No under-mount clearance required
- Machined / Anodized aluminum body with a light brushed finish
- Threaded shaft for consistent lift and descent
- Brass bearings for smooth operation
- Features breakaway pin for manual operation
- Includes 6” lead of 20-gauge wire from the base
- 12-volt DC power supply for lift and descent
- Accepts 3A fuse in the main +12 VDC power feed (not included)
- Pairs with Backing Plate (BP-0850AEY), which is sold separately
- Pairs with 6º Wedge Plate (WP-850-950), which is sold separately
- Sold individually
- Made in the USA
- 1-year limited warranty
Features & Specifications
- Manufacturer Part Number: GS-860
- UPC: 0631352093480
- Dimensions: 12 × 9 × 7
- Category: Communication | Antenna Mounts & Accessories / Electronics | Antennas & Mounts
- Polished stainless-steel body with a mirrored finish
- Smooth lift and descent
- Standard 1″-14 thread (male) shaft accommodates standard VHF antennas up to 8′
- No under-mount clearance needed
- High-torque, anti-backlash ball-bearing motor
- Integrated nylon knob on breakaway pin allows for manual operation in case of power failure
- Electronic Control Module includes a 5A fuse for device protection
- Comes with a 12″ wire lead and water-sealed Deutsch connector, using 18-gauge wire from the base
- Operates on 12-volt DC for lift and descent
- 1-year limited warranty
