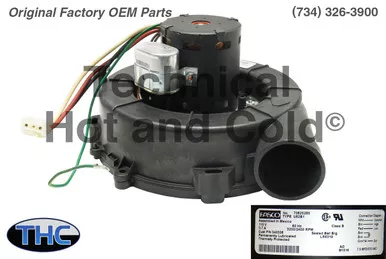

Thermo Pride AOPS7427 Replacement Part
Includes:
- (1) – Draft Inducer Motor Assembly with Capacitor (AOPS7427)
- (1) – Gasket (330137)
Specifications
- Manufacturer: Fasco
- Model Number: 70625285
- Fasco Motor Type: U62B1
- Voltage: 115
- Amperage: 0.7
- Hertz: 60
- RPM: 3200/2400
- Insulation Class: B
- Bearings: Sealed Ball
- Motor Cooling: Air Over
- Rotation: Clockwise Lead End
- Housing: Plastic
- Connection Diagram:
- White – Common
- Black – High
- Red – Low
- Brown. Brown, Green/Yellow – Ground
Replaces Old Thermo Pride Part Numbers
- There are no older part numbers.
Other Part Numbers
Number: 70525285, Type: U62B1, LR6319, A0, M1216, , 7.5 MFO/370 VAC, JK7739377-1, 70625286, 0056-1, 0056, Housing,U.S. Patent: 5,954,476, 5,520,302, 7,851, 709,, JC1351610, 1604, 1707
FitsModels:
(Press ctrl + F to find model number below.)
CHX 1 SERIES and CDX 1 SERIES
