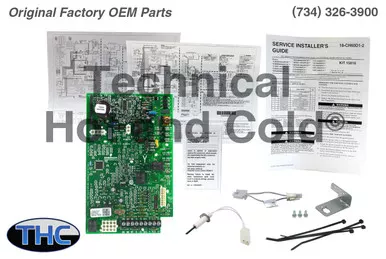

Trane KIT15816 Replacement Part
Includes:
- (1) – Circuit Board (-)
- (1) – Wiring Harness Adapter (D343723P01)
- (1) – Hot Surface Ignitor (D156805P01)
- (1) – Ignitor Bracket (A341948P02)
- (4) – Zip Ties (A138030P01)
- (3) – Screws (N156P1506B)
- (1) – Service Installers Guide (18-CH60D1-3A-EN)
- (1) – Wiring Diagram-UH2 (D344303P04)
- (1) – Wiring Diagram-DH2 (D344304P04)
- (1) – Kit Conversion Label (D344306P01)
Specifications
- Control Board:
- Length: 10-1/2″
- Width: 6-1/2″
- Automatic Ignition System
- Hertz: 60
- 120VAC 1.0A Max
- 24VAC 0.6A Max
- Ignitor:
- Type: Silicon Nitride
- Element Length: 3/4″
- Total Length w/ Ceramic Base: 1-7/8″
- Lead Length w/ Connector: 5-3/8″
Country of Origin: USA
Replaces Old Trane Part Numbers
- CNT05160
- CNT04985
- CNT04678
- CNT03777
Other Part Numbers
D343813G03, ANSI Z21.20, 59-4760 REV. G, Emerson Climate Technologies, Emerson, 11828110300384, D156805, 1816, Trane, CONTROL; INTEGRATED FURNACE CONTROL WITHOUT COVER (IFC) 50V64, D344307P01,12301110300410, 59-4760, 5002-0569, E354245,
Fits Trane and American Standard Models:
(Press ctrl + F to find model number below.)
ADH2B060A9V3VAA, ADH2B060A9V3VAC, ADH2B080A9V3VAA, ADH2B080A9V3VAC, ADH2C100A9V4VAA, ADH2C100A9V4VAC, ADH2D120A9V5VAA, ADH2D120A9V5VAC, ADY060R9V3W5, ADY060R9V3W6, ADY080R9V3W5, ADY080R9V3W6, ADY100R9V4W5, ADY100R9V4W6, ADY120R9V5W5, ADY120R9V5W6, AUH2B060A9V3VAA, AUH2B060A9V3VAB, AUH2B080A9V3VAA, AUH2B080A9V3VAB, AUH2C100A9V4VAA, AUH2C100A9V4VAB, AUH2D120A9V5VAA, AUH2D120A9V5VAB, AUY060R9V3W5, AUY060R9V3W6, AUY080R9V3W5, AUY080R9V3W6, AUY100R9V4W5, AUY100R9V4W6, AUY120R9V5W5, AUY120R9V5W6, TDH2B060A9V3VAA, TDH2B060A9V3VAB, TDH2B080A9V3VAA, TDH2B080A9V3VAB, TDH2C100A9V4VAA, TDH2C100A9V4VAB, TDH2D120A9V5VAA, TDH2D120A9V5VAB, TDY060R9V3W5, TDY060R9V3W6, TDY080R9V3W5, TDY080R9V3W6, TDY100R9V4W5, TDY100R9V4W6, TDY120R9V5W5, TDY120R9V5W6, TUH2B060A9V3VAA, TUH2B060A9V3VAB, TUH2B080A9V3VAA, TUH2B080A9V3VAB, TUH2C100A9V4VAA, TUH2C100A9V4VAB, TUH2D120A9V5VAA, TUH2D120A9V5VAB, TUY060R9V3W5, TUY060R9V3W6, TUY080R9V3W5, TUY080R9V3W6, TUY100R9V4W5, TUY100R9V4W6, TUY120R9V5W5, TUY120R9V5W6
