Trane KIT16584 Replacement Part

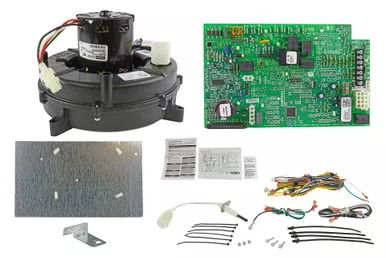

Includes:
- (1) – Inducer
- (1) – Integrated Furnace Control Board
- (1) – IFC MOB Bracket
- (1) – Inducer – Limit
- (1) – Wire Harness
- (1) – Igniter SiNi
- (1) – Bracket, SiNi Igniter
- (3) – Screw, 8-18 AB HWH 3/8″
- (1) – Junction Box Wire
- (1) – Transformer Wire – Black
- (1) – Transformer Wire – Neutral
- (1) – Door Switch to IFC Wire
- (1) – Furnace Junction Box Ground Wire
- (1) – Inducer Limit Insulation
- (3) – Inducer to Mounting Bracket Screws
- (2) – Inducer Limit to Inducer Screws
- (4) – Plastic Stand Off
- (6) – Wire Tie
- (1) – Wiring Diagram
- (1) – Installation Instructions
- (1) – Conversion Label
- (1) – Flue Stack Clamp
- (4) – Wire Tie
Specifications
- Manufacturer: Fasco
- Model Number: 70920238
- Fasco Motor Type: U92B1
- Voltage: 33-110
- Hertz: 60-180
- Amperage: 1.0
- RPM: 1500-4700
- Thermally Protected
- Insulation Class B
- Bearings: Sealed Ball
- Motor Cooling: Air Over
- Rotation: Counterclockwise Lead End
- Inducer Limit Opens @ 155°F
- Inducer Limit Resets on Temperature Drop @ 95°F
- Automatic Reset
Replaces Old Trane Part Numbers
- KIT15019
Other Part Numbers
70920238, D342097P01, PF8426463-9, 70920238J, 0869-1, 0869, A1530, L155-60F, B342017P01, 21511, P01, 36TX11, Fasco, 70920238, KIT16584, ECM to MOB Kit, D343216P07, X38010571010, M491, Type U92B1, D342097P01, KIT; INDUCER CONVERSION, INCLUDES INDUCER BLOWER, IGNITER,LIMIT SWITCH, IFC CONTROLAND WIRE HARNESS, D941869G07
Fits Trane and American Standard Models:
(Press ctrl + F to find model number below.)
ADX060R936W0, ADX060R936W1, ADX080R942W0, ADX080R942W1, ADX100R948W0, ADX100R948W1, ADX120R960W0, ADX120R960W1, AUX060R936W0, AUX060R936W1, AUX080R942W0, AUX080R942W1, AUX100R948W1, AUX100R948W0, AUX100R948W1, AUX120R960W0, AUX120R960W1, TDX060R936W0, TDX060R936W1, TDX080R942W0, TDX080R942W1, TDX100R948W0, TDX100R948W1, TDX120R960W0, TDX120R960W1, TUX060R936W0, TUX060R936W1, TUX080R942W0, TUX080R942W1, TUX100R948W0, TUX100R948W1, TUX120R960W0, TUX120R960W1
