York Coleman S1-33103009000 Replacement Part
Includes:

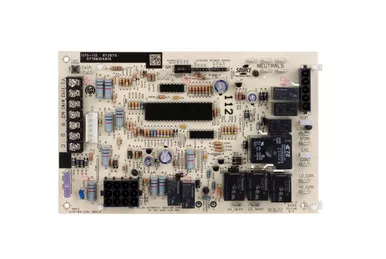

- (1) – Control Board (S1-33103009000)
- (1) – Installation Instructions (035-22271-001-C-0814)
Specifications
- VAC: 24
- Hertz: 60
- Max mA: 0.5
- Dimensions (LxW): 8″ x 5″
- Fuse: 3 Amps
- Jumpers –
- Blower Delay: This is in sec’s shut down after furnace has meet temp.
- Staging: If you are NOT using a 2 stage thermostat you will need to select when you want 2nd stage to come on. This measurement is in minutes.
- Blower Speed: This is the constant speed for the blower motor when you are running fan only mode.
Country of Origin: USA
US HTS Code: 8415.90.8085
Replaces Old York Coleman Part Numbers
- S1-33102954000
- S1-33109168000
- S1-03109168000
- S1-03521260001
- S1-03101290000
Other Part Numbers
KIT FURNACE CONTROL 2-STAGE, York, 2-Stage, Source 1, HVAC SERVICE PARTS, 0719M104814, 872670, 1170-112, 1170-83-1121
FitsModels:
(Press ctrl + F to find model number below.)
TM8T060A12MP11, TM8T080B12MP11, TM8T080C16MP11, TM8T100C16MP11, TM8T100C20MP11, TM8T120C20MP11, TM9T060B12MP11, TM9T080B12MP11, TM9T080C16MP11, TM9T100C16MP11, TM9T100C20MP11, TM9T120D20MP11, TMLT060A12MP11, TMLT080B12MP11, TMLT080C16MP11, TMLT100C16MP11, TMLT100C20MP11, TMLT120C20MP11
